MHD-Series High Density Server Cabinet
As AI transforms data center architecture, traditional cabinets can no longer support the weight, cooling, and spatial demands of modern GPU-driven systems. The Martin MHD-Series High Density Server Cabinet is purpose-built for these new requirements—delivering exceptional structural strength, optimized airflow pathways, and intelligent space planning for today’s AI and hyperscale environments.
AI deployments demand more than a standard rack. Dense GPU arrays, liquid-cooling manifolds, redundant power distribution, and massive cable volumes require both unmatched load capacity and strategic internal layout. The MHD-Series High Density Server Cabinet is designed precisely for that.
Features
- Rugged and Multifunctional Welded 6063 -T5 Aluminum Extrusion Frame Design
- 4,000 LB Dynamic Load Capacity, 5,000 LB Static Load Capacity
- 19” Rack Mount Spacing
- 29.50″ (750mm) and 31.50″ (800mm) Overall Frame Widths Available
- 50.00” (1270mm) and 60.00″ (1524mm) Overall Frame Depths Available
- 42U, 48U, and 52U Height Options
- 2 Pairs of Fully Adjustable Square Hole Mounting Rails with Cable Pass Through and Cover Plates (Brush Kit Available)
- U-Label Markings

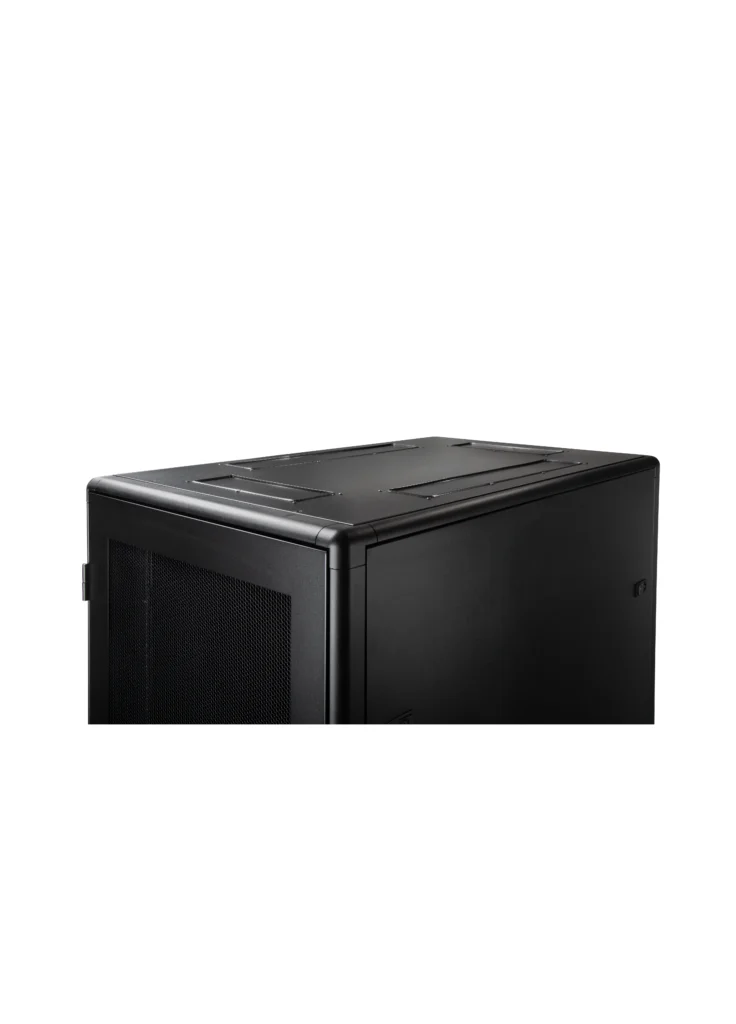

- Solid Top Panel with (2) 12″ X 4″ Cable Access Cutouts Front and Rear, and (2) 24″ X 4″ Cable Access Cutouts on Left and Right (Brush Kit Available)

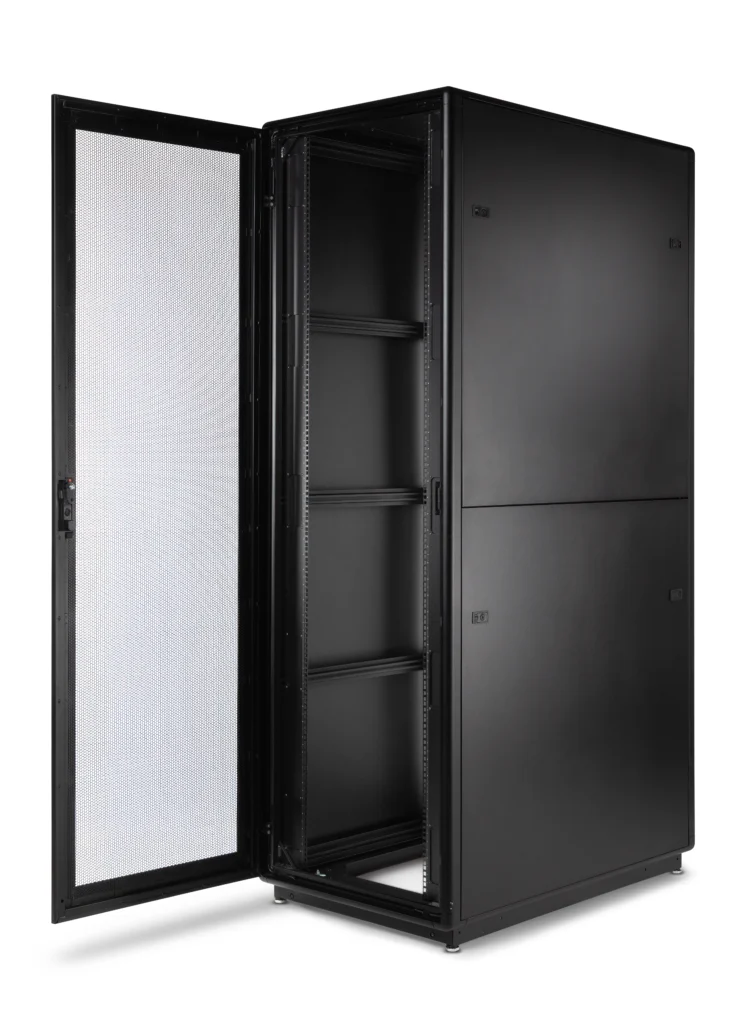

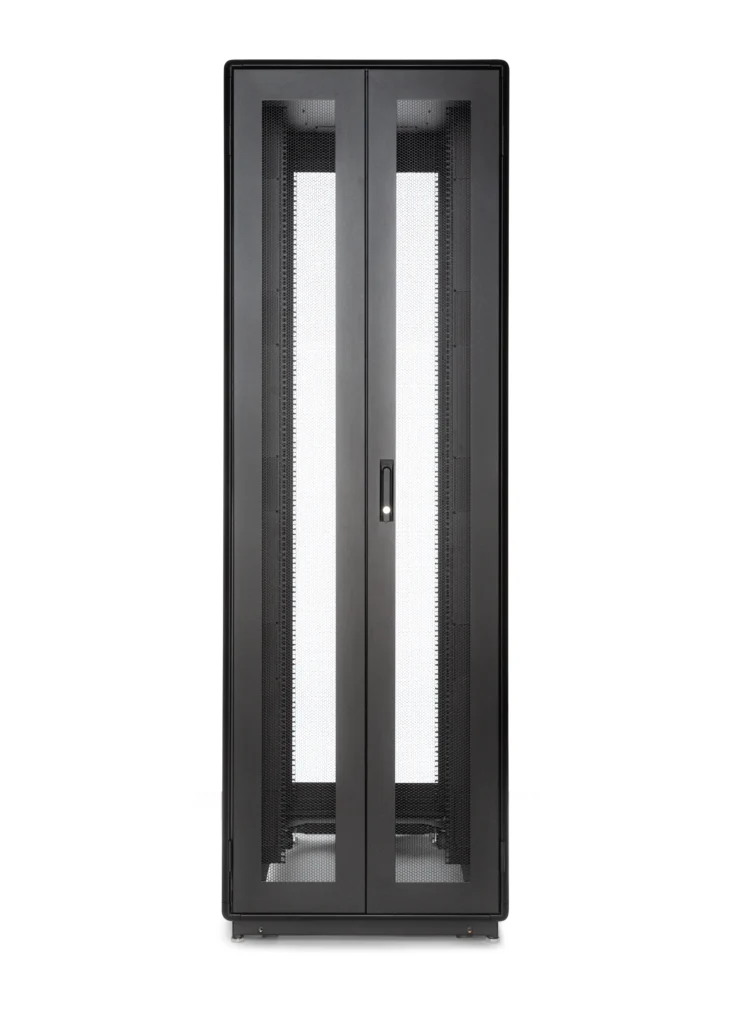

- 78% Perforated Front and Rear Doors for Ideal Air Flow
- HD Caster Base with Levelers

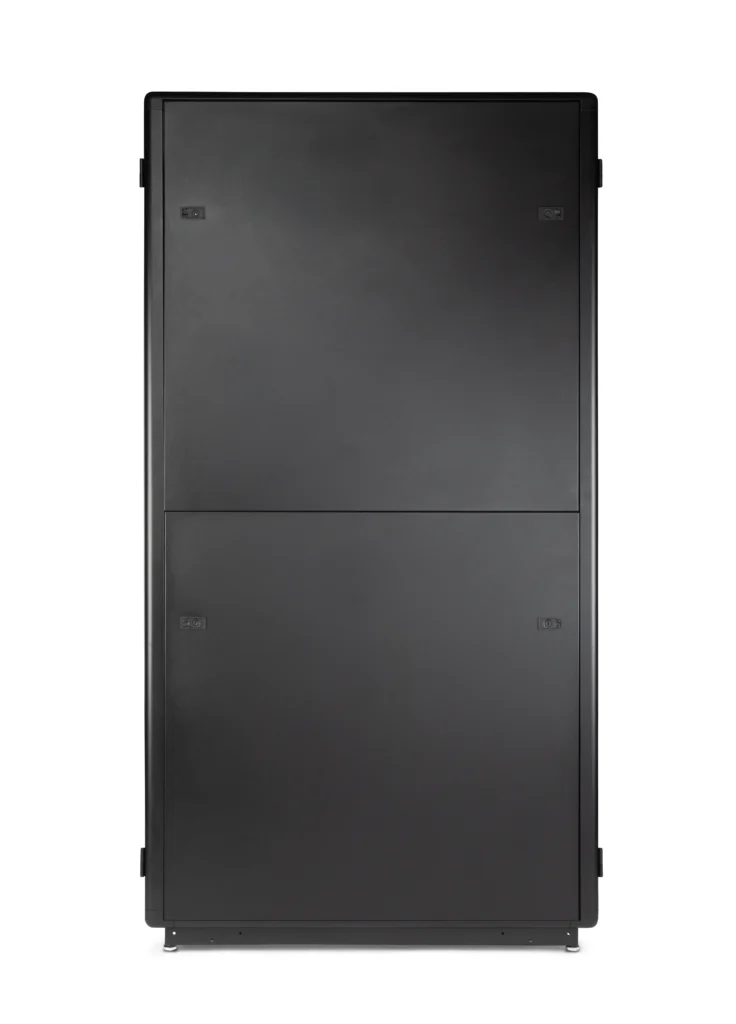

- Quick Release Locking Side Panels

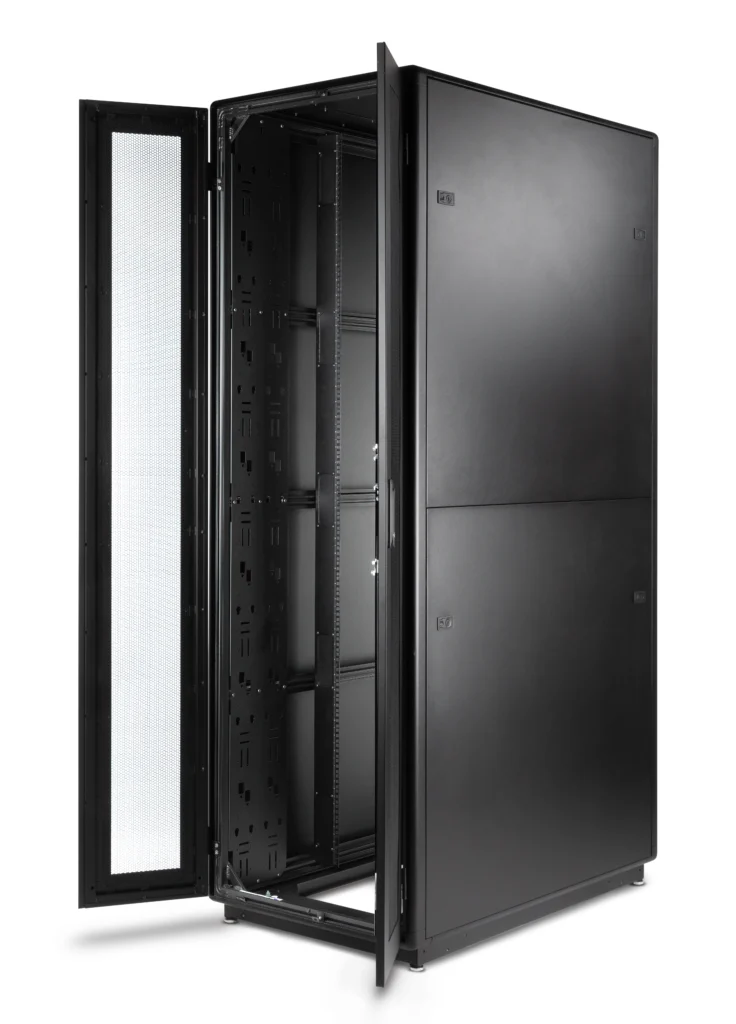

- (2) Extra Wide Lacing Panels for Mounting up to (3) Vertical PDUs on Each or Cable Management
- Hardware Pack Included: HWM6-40
- Supports Wide Variety of Martin Accessories
- Powder Coat Finish Available in a Variety of Standard and Custom Colors
- Designed and Manufactured in the USA
- Custom Sizes and Configurations Available Upon Request
MHD-Series High Density Server Cabinet
| PART NUMBER | HEIGHT | WIDTH | DEPTH | DRAWING | CAD MODEL |
|---|---|---|---|---|---|
| MHD732547 | 42U (2067 mm) | 29.53″ (750 mm) | 50.00″ (1270 mm) | Download | Download |
| MHD732747 | 42U (2067 mm) | 31.50″ (800 mm) | 50.00″ (1270 mm) | Download | Download |
| MHD732557 | 42U (2067 mm) | 29.53″ (750 mm) | 60.00″ (1524 mm) | Download | Download |
| MHD732757 | 42U (2067 mm) | 31.50″ (800 mm) | 60.00″ (1524 mm) | Download | Download |
| MHD842547 | 48U (2334 mm) | 29.53″ (750 mm) | 50.00″ (1270 mm) | Download | Download |
| MHD842747 | 48U (2334 mm) | 31.50″ (800 mm) | 50.00″ (1270 mm) | Download | Download |
| MHD842557 | 48U (2334 mm) | 29.53″ (750 mm) | 60.00″ (1524 mm) | Download | Download |
| MHD842757 | 48U (2334 mm) | 31.50″ (800 mm) | 60.00″ (1524 mm) | Download | Download |
| MHD912547 | 52U (2512 mm) | 29.53″ (750 mm) | 50.00″ (1270 mm) | Download | Download |
| MHD912747 | 52U (2512 mm) | 31.50″ (800 mm) | 50.00″ (1270 mm) | Download | Download |
| MHD912557 | 52U (2512 mm) | 29.53″ (750 mm) | 60.00″ (1524 mm) | Download | Download |
| MHD912757 | 52U (2512 mm) | 31.50″ (800 mm) | 60.00″ (1524 mm) | Download | Download |
