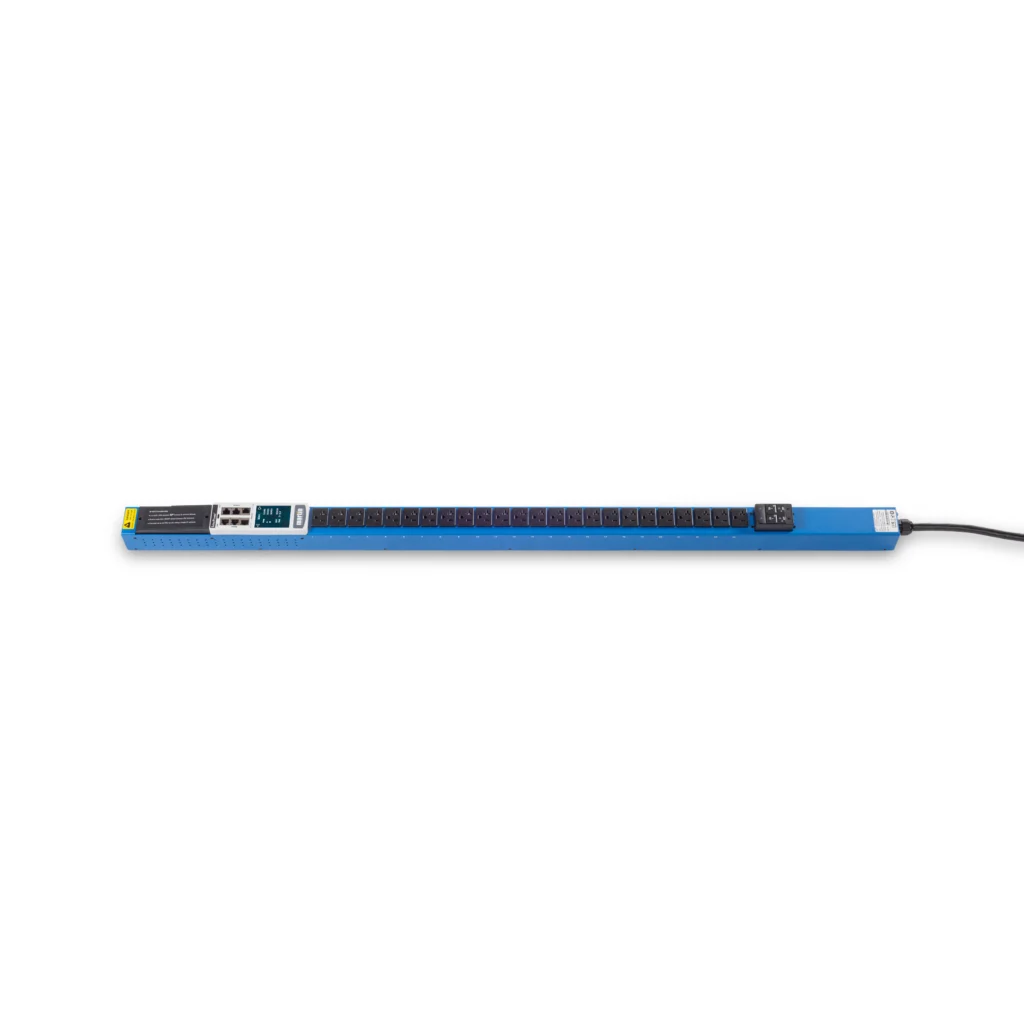

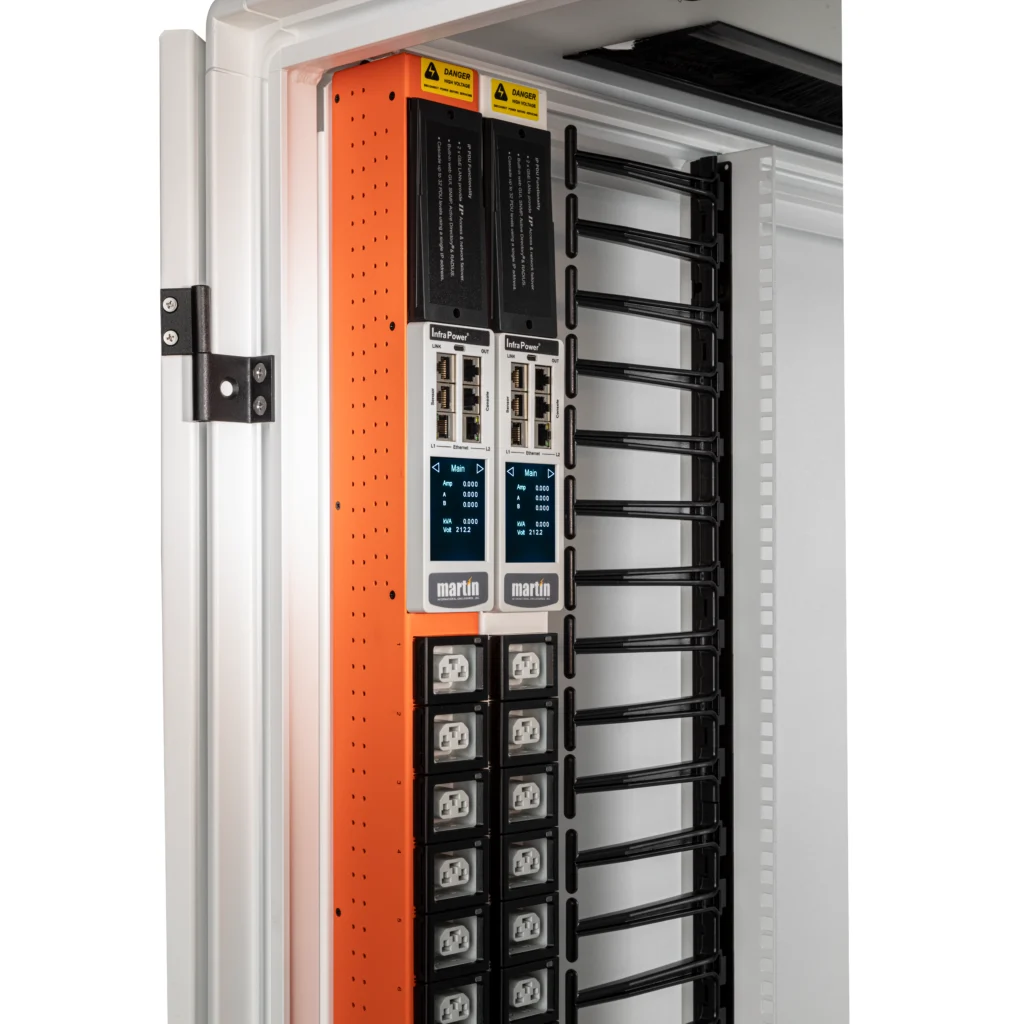

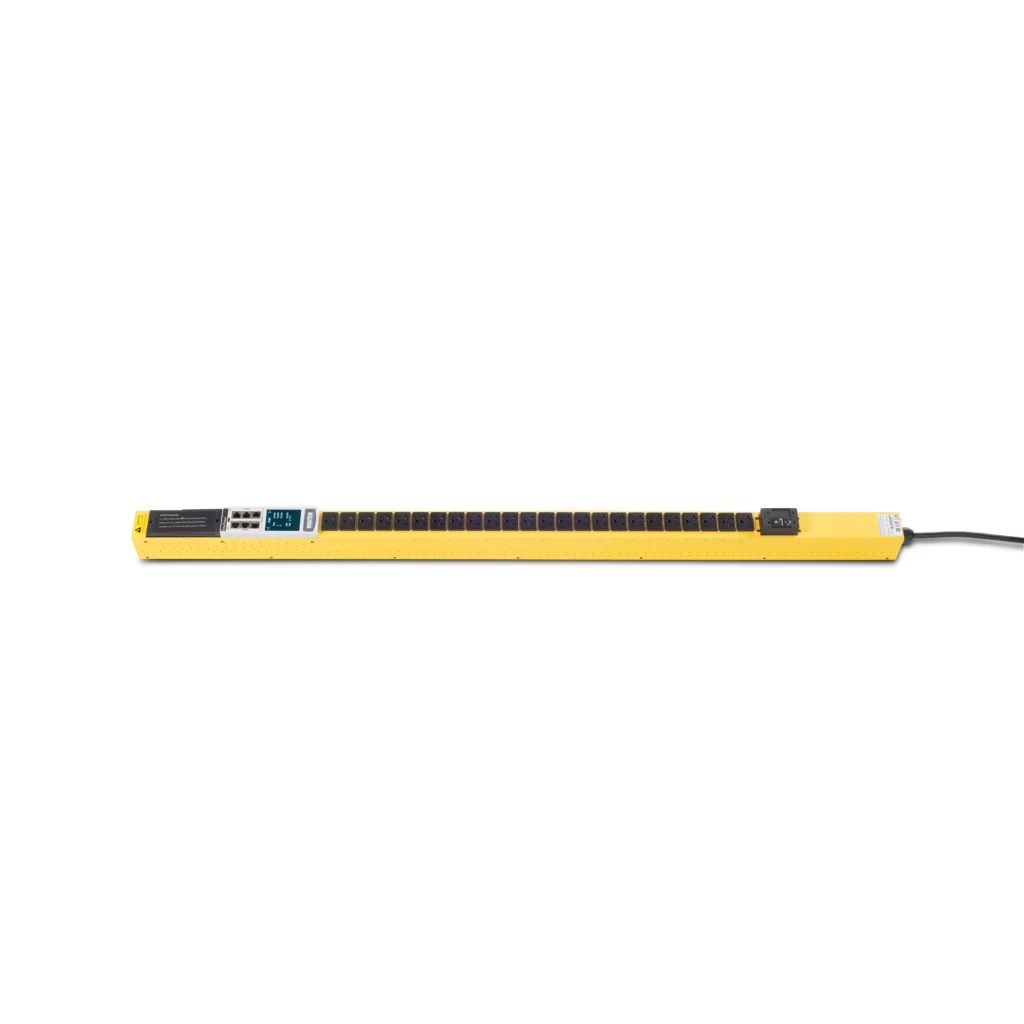

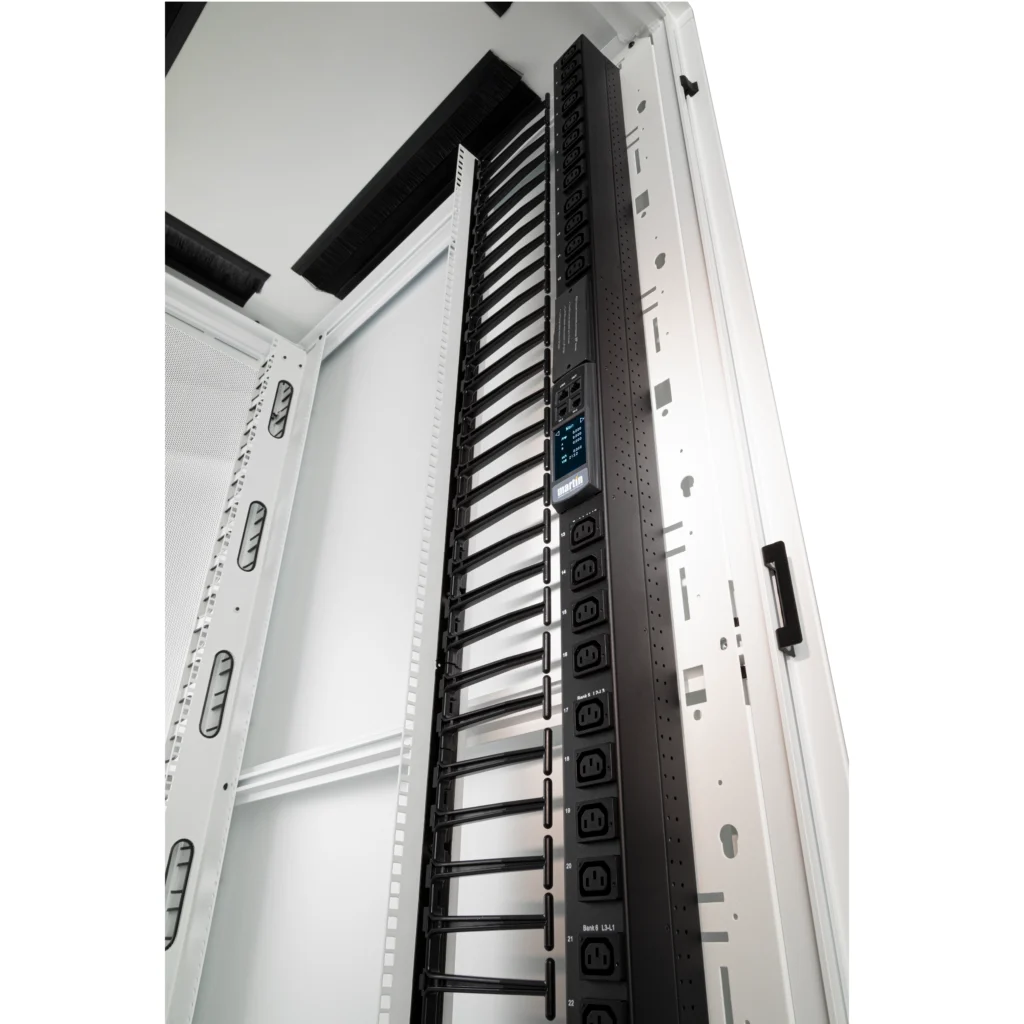

Martin Dynamic Power Strips deliver high-quality, reliable, and networkable rack power distribution for modern IT environments. Available in standard and custom configurations, these smart PDUs provide flexible and intelligent power management to meet the demands of data centers, colocation facilities, and enterprise networks.

Designed for advanced monitoring and control, Martin Dynamic Power Strips feature smart meters and support daisy-chain connections, allowing multiple PDUs to be cascaded via Cat6 cables while remaining accessible under a single network IP address. The included management software offers intuitive tools for remotely monitoring and controlling a large number of PDUs from anywhere, ensuring optimal power utilization, minimizing downtime, and enhancing operational efficiency. Newly designed Slide-Lock IEC outlets provide secure, reliable connections for L13, L19, and Combo X19 devices, combining cutting-edge functionality with the durability and performance you expect from Martin.

Features

Connection

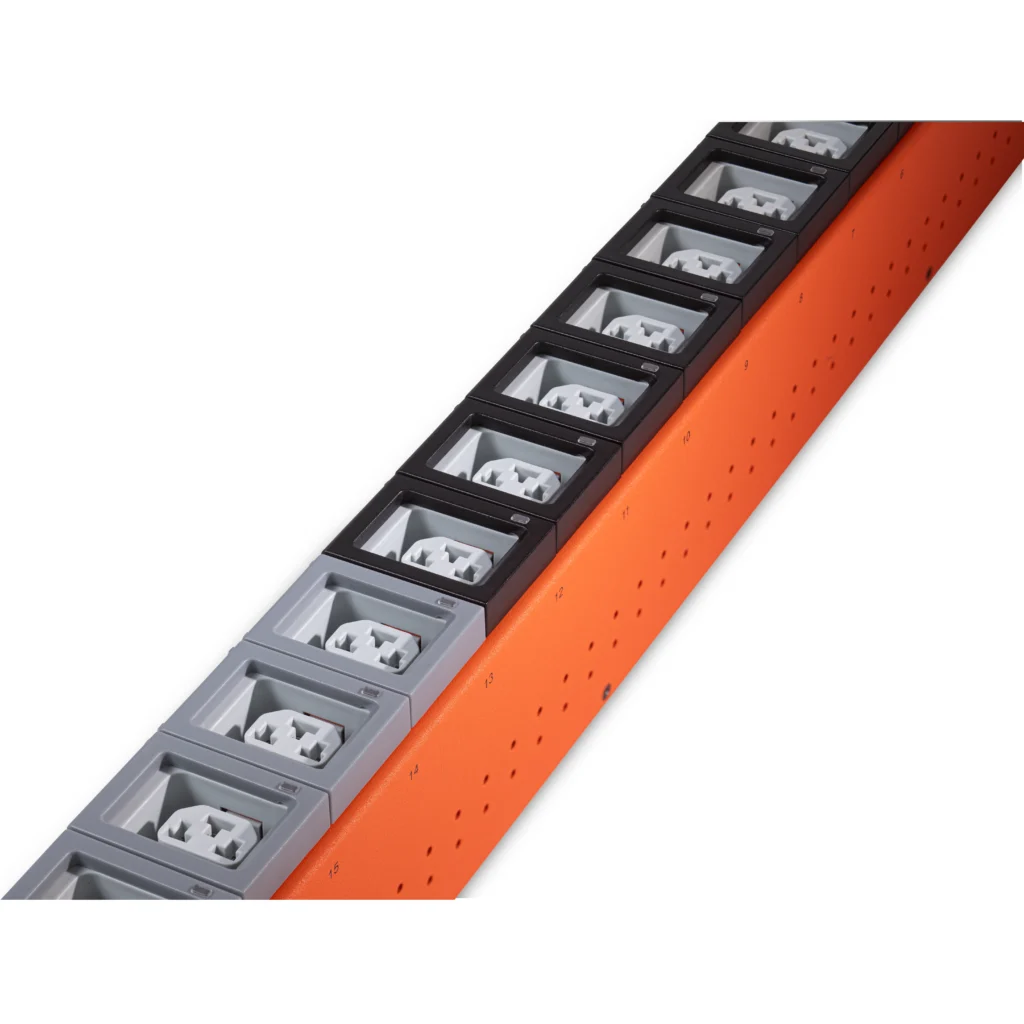

Secure Auto Lock – Patented IEC outlets with slide lock mechanism – L13 Slide-lock C13 outlets connectable & lockable to C14 plugs using generic IEC cables – L19 Slide-lock C19 outlets connectable & lockable to C20 plugs using generic IEC cables – X19 Slide-lock combo C13 / C19 outlet connectable & lockable to C14 / C20 plugs using generic IEC cables.

Remote Access
High Availability – MZ IP PDU model with embedded dual Gigabit ethernet LAN IP for redundant network access via IP – Enterprise-level IP authentication support e.g., Active Directory (AD),
LDAPv3 / LADPS, RADIUS or local credential database.

Metering

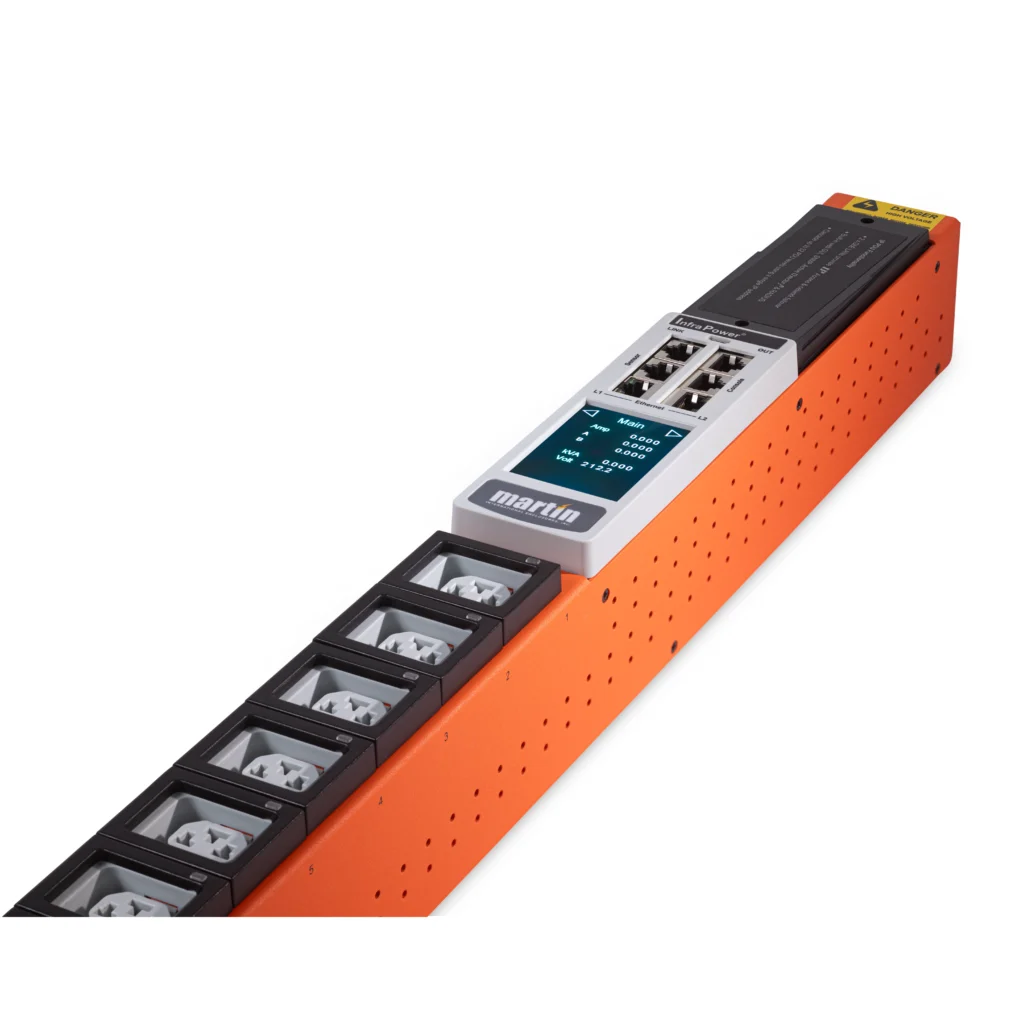

Precise Intelligence – MZ & M meters provide real-time local & remote power management – Billing grade meter accuracy within +/- 0.5%.

Linking
Cost Saving Efficiency – Both MZ & M PDUs provide daisy chain functionality – Via one single Z IP PDU or PDU dongle up to 32 iPDU levels can be accessed via single network IP.

Configuration

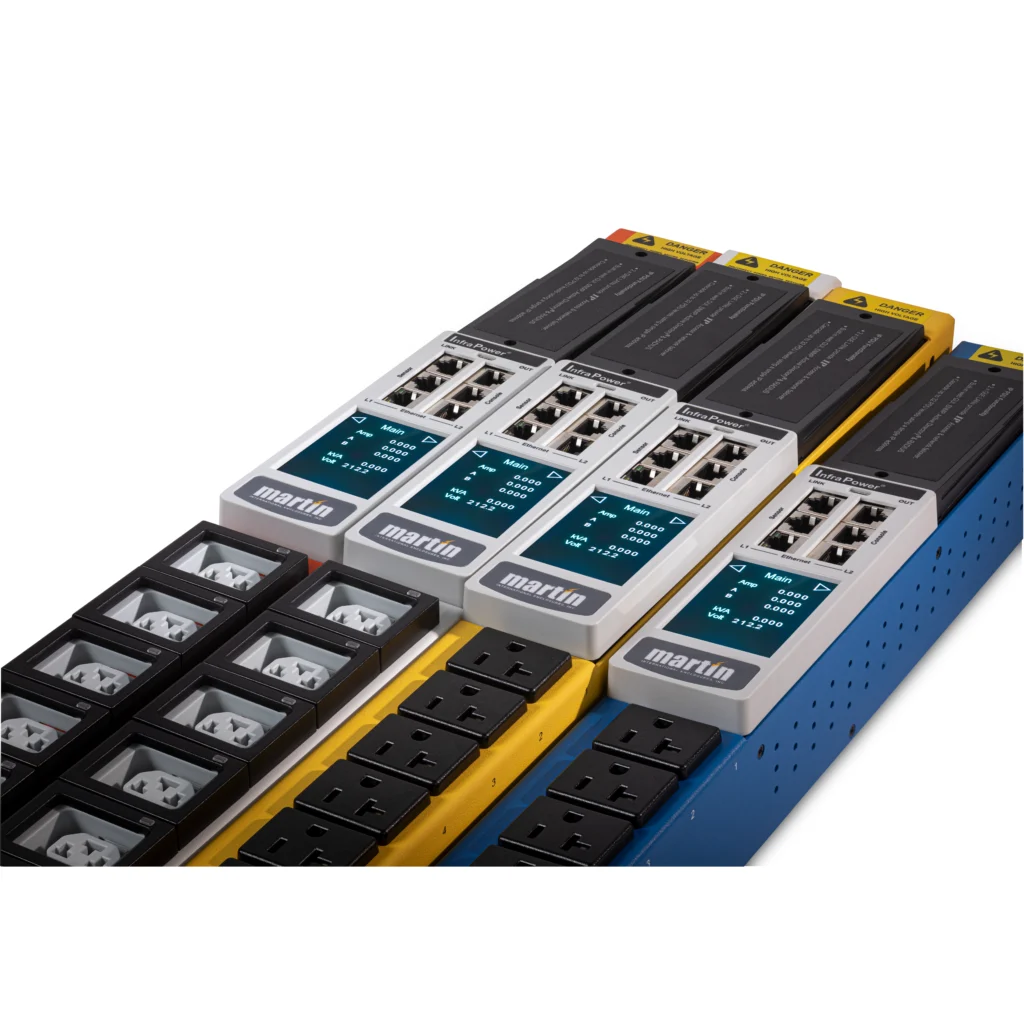

Diversified & Customizable – 110V, 208V, 230V, 400V, 415V and more Volt inputs – 1 Phase, 2 Phase & 3 Phase PDU – 10A to 100A Amp inputs – Up to 48 outlets for standard models; Custom outlet configurations available – 0U, 1U & 2U form factor for standard models; Customized chassis size and color available – Wide range of PDU models, including Intelligent, Metered & Basic – C13, C19, US NEMA, UK, Schuko, French, Fused IEC and other outlet selections available – Variety cord set & inlet available – Top or Bottom Feed – Flexible Mounting – all vertical PDUs are supplied with screw button & universal bracket mounting kits – all rackmount PDUs are supplied with horizontal rackmount kits.
