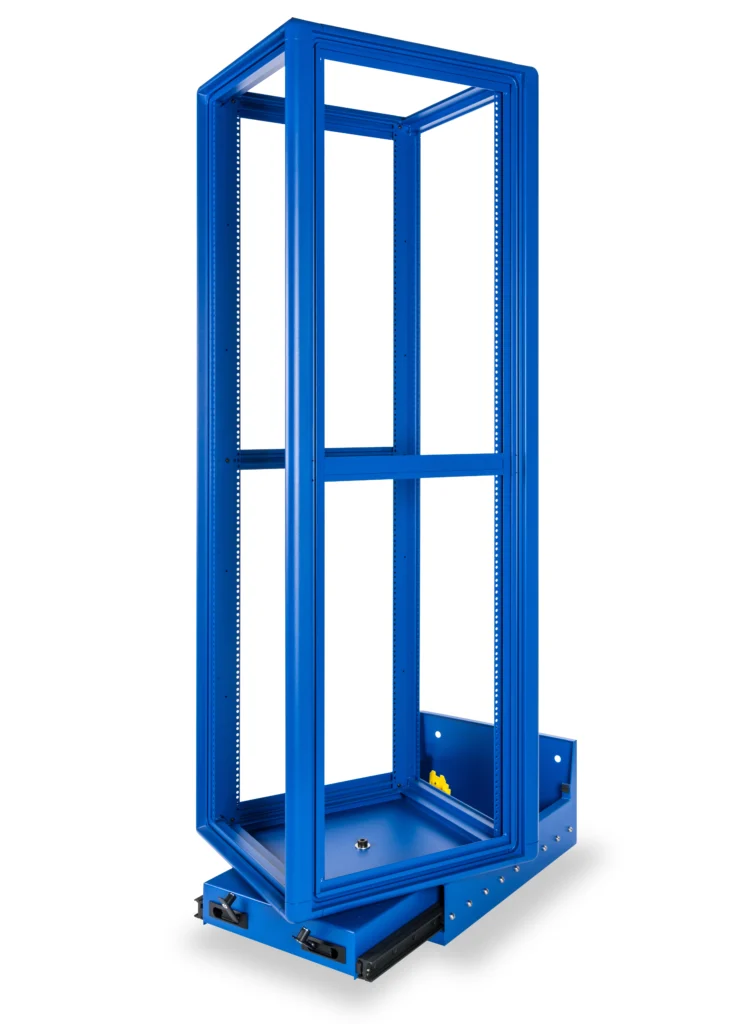

MSV-Series Slide Out Racks
Martin Enclosures proudly introduces the MSV-Series Slide Out Rack, an innovative solution engineered for environments where accessibility and space efficiency are critical. Designed to pull out from the wall and swivel smoothly, the MSV-Series allows users to extend the rack forward and rotate it for effortless rear-access, all within a minimal footprint. This makes it an ideal choice for AV, broadcasting, and other technology dense installations.
Developed specifically for applications where space is both limited and valuable, the MSV-Series delivers exceptional strength and versatility. The rack supports up to 1,000 LBS and offers full 360-degree rotation, with cabling as the only limiting factor. For maximum stability, the MSV-Series must be securely bolted to both the wall and the floor.
Features
- Rugged and Multifunctional Welded 6063 – T5 Aluminum Extrusion Frame Design
- 19” Rack Mount Spacing
- 24” Overall Frame Width
- 24” and 30” Internal Depths Available
- 28″ Pull Out Extension (For 24″ depth version)
- 35″ Pull Out Extension (For 30″ depth version)
- Rack Has Safety Slide Out and Swivel Locks (Separately)
- 1,000 LB Weight Load Capacity (HD Versions Available Upon Request)
- 14U-42U Height Options
- 2 Pairs of Fully Adjustable Square Hole Mounting Rails
- Doors and Panels Optional
- Hardware Pack Included: HWM6-40
- Supports Wide Variety of Martin Accessories
- Powder Coat Finish Available in a Variety of Standard and Custom Colors
- Designed and Manufactured in the USA
- Custom Sizes and Configurations Available Upon Request
