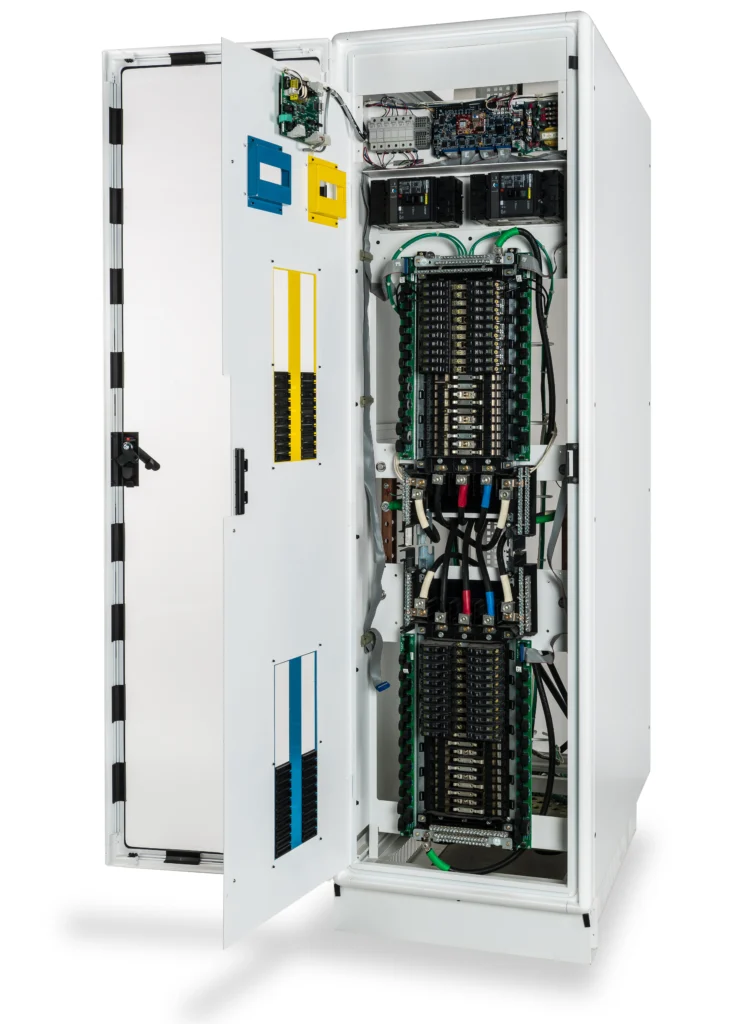

Power Distribution Enclosures
Martin’s Power Distribution Enclosures (PDE) provide an efficient, flexible way to distribute power while reducing circuit costs and supporting long-term reliability. Integrated wire management minimizes the need for expensive seal-tight cables and eliminates external raceways, with accessible routing at the lower front and rear of the enclosure and adjacent server cabinets. Additional PDE units can be easily added to existing rows, and standard top or bottom cable landings maintain compatibility with non-adjacent Martin racks, third-party cabinets, and standalone systems.
Engineered for versatility, these enclosures can be deployed in raised-floor, reduced-height, or non-raised floor environments, delivering organized, reliable power distribution across any data center layout.
Features
- Rugged and Multifunctional Welded 6063 – T5 Aluminum Extrusion Frame Design
- Designed for In Row Data Center Applications
- Matches Size of Other Martin Server and Network Cabinets
- Delivered Assembled and Tested
- Locking Front Clear Lexan Door and Solid Steel Rear Door
- Removable Access panels

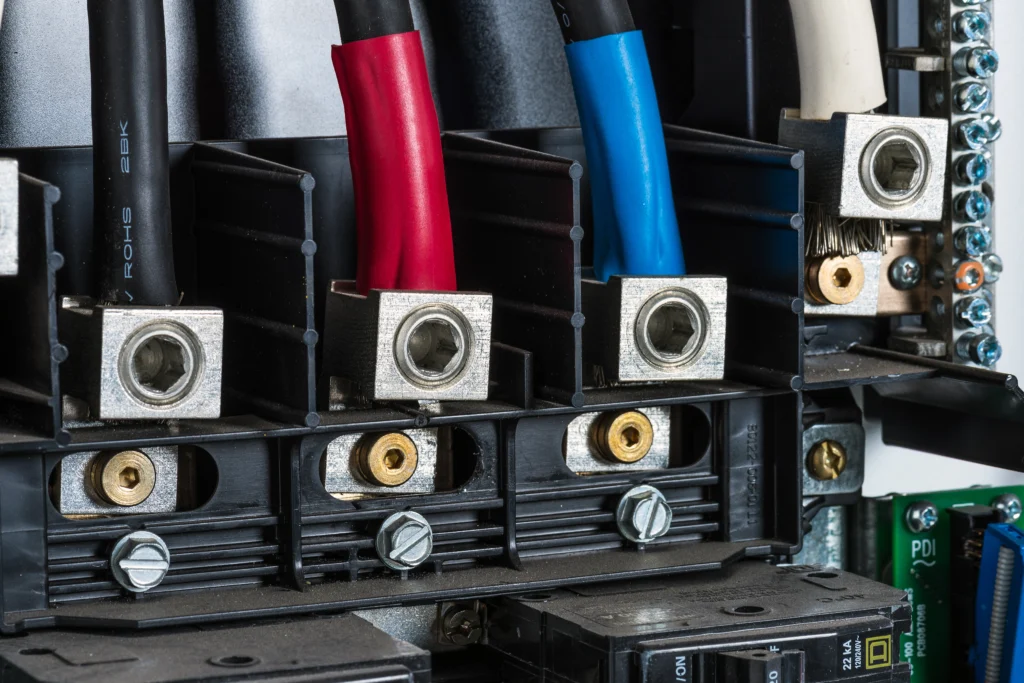

- 120/280 VAC Four Wire Plus Ground Input
- Dual Input Option for Dual Line Cord Equipment
- Available in Input Configurations for
- 208/120v, WYE 3-phase, up to 225A
- 400/230v, WYE 3-phase, up to 225A
- 480v DELTA to 208/120v WYE 3-phase, up to 45 KVA
- Inquire About 400A Options

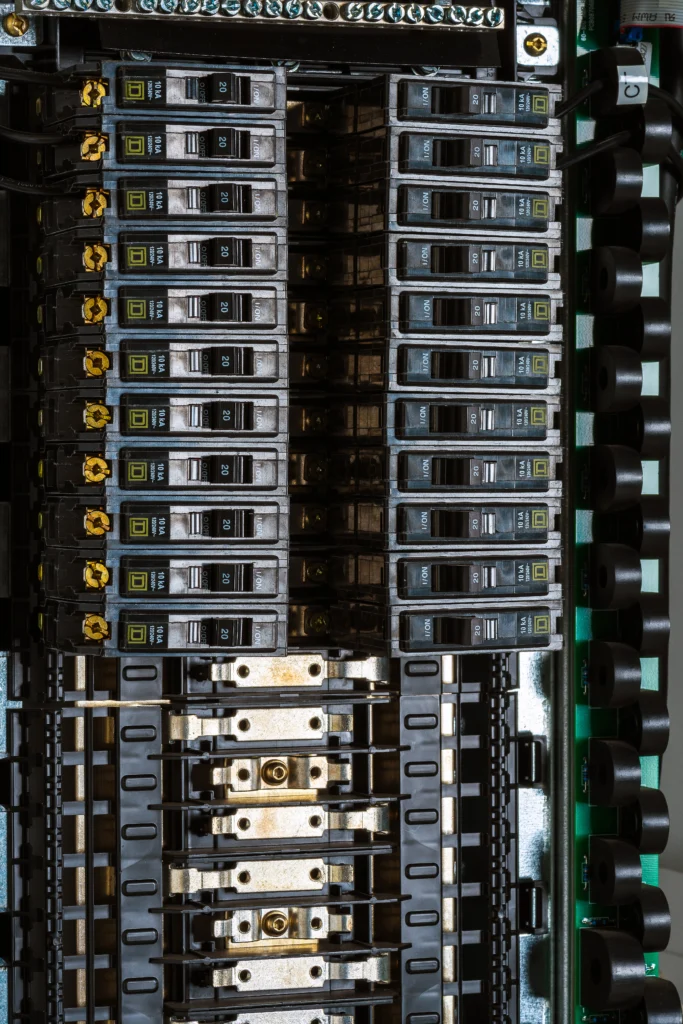

- 84 or 168 Breaker Positions

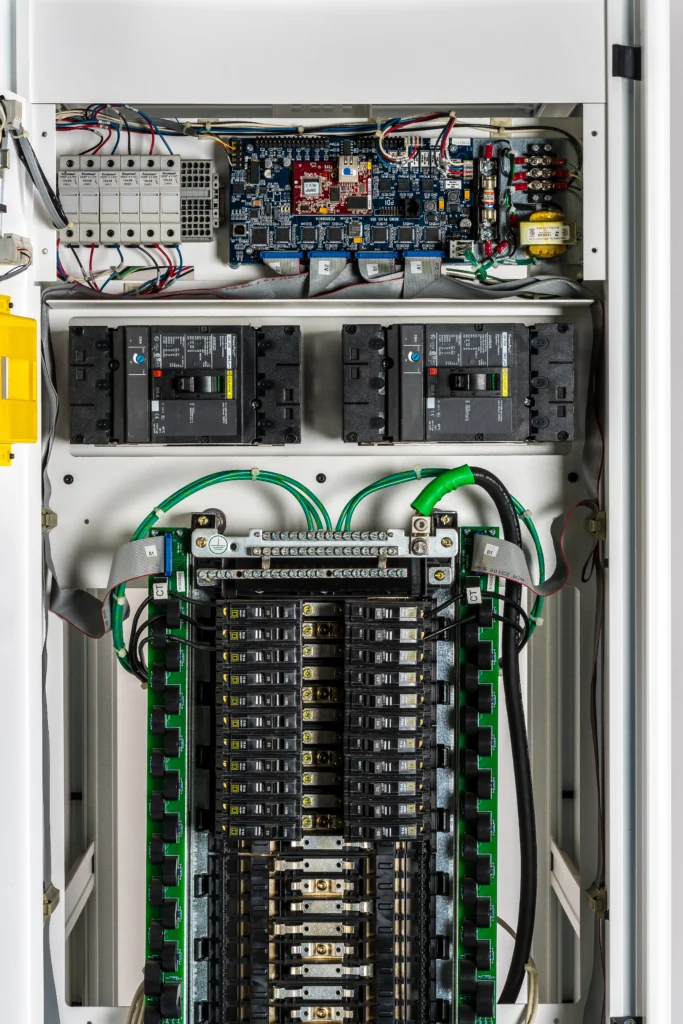

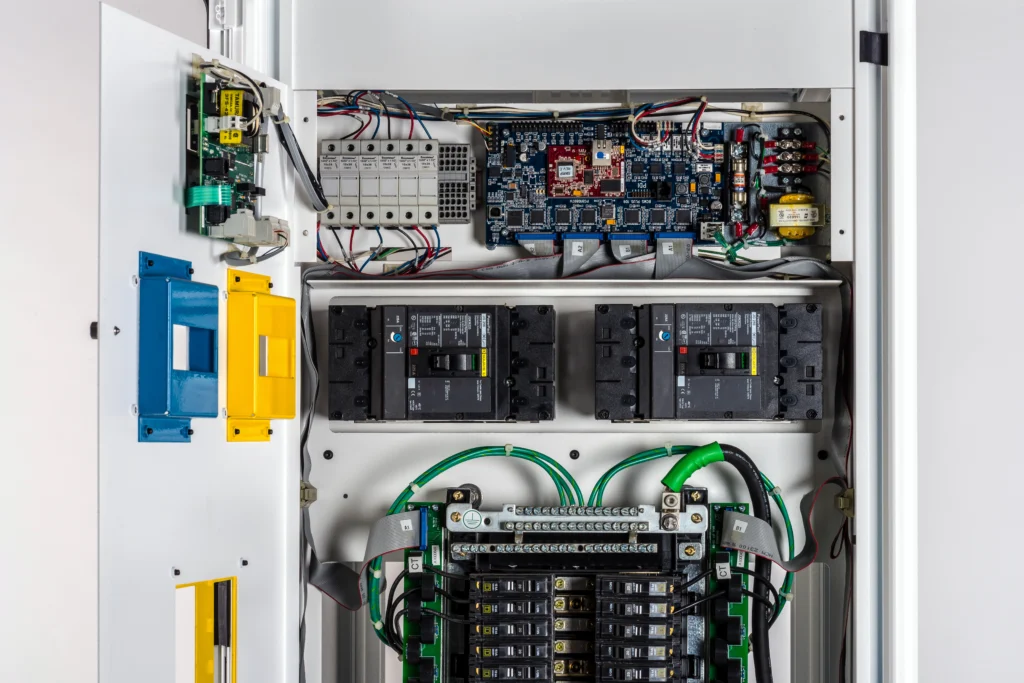

- Optional Main Breakers
- Optional Line Filters
- Color Coded Panels
- 200% rated neutral
- Universal Panel Boards
- Integrated Wire Management
- Easy Access Cable Management in Lower Front and Rear of Enclosures
- Top and/or Bottom Cable Landing
- ETL/UL 508A listed
- Reduces Circuit Costs
- Reduces the Amount of Expensive Seal Tight Cables Required
- Reduces Labor for Installing New Circuits
- Reduces Under Floor and Overhead Cable Clutter
- Can Expand Existing Power Distribution Systems
- Easier to Add Server Cabinets to Existing Row
- Can be Used in Raised Floor, Reduced Height and Non-Raised Floor Applications
- Supports Contractor Installed Receptacles Feeding Vertical PDUs in Server Cabinets
- Supports Better Cable Housekeeping
- A Single PDE Can Feed Non-Adjacent Rows With the Wire Management Feature
- Supports Wide Variety of Martin Accessories
- Powder Coat Finish Available in a Variety of Standard and Custom Colors
- Designed and Manufactured in the USA
- Custom Sizes and Configurations Available Upon Request
Power Distribution Enclosures
| Part Number | Panel Opening Height | Rackmount Width | Internal Depth | Drawing | CAD Model |
|---|---|---|---|---|---|
| None | none | none | none | Download | Request Info |
