Cantilever Shleves

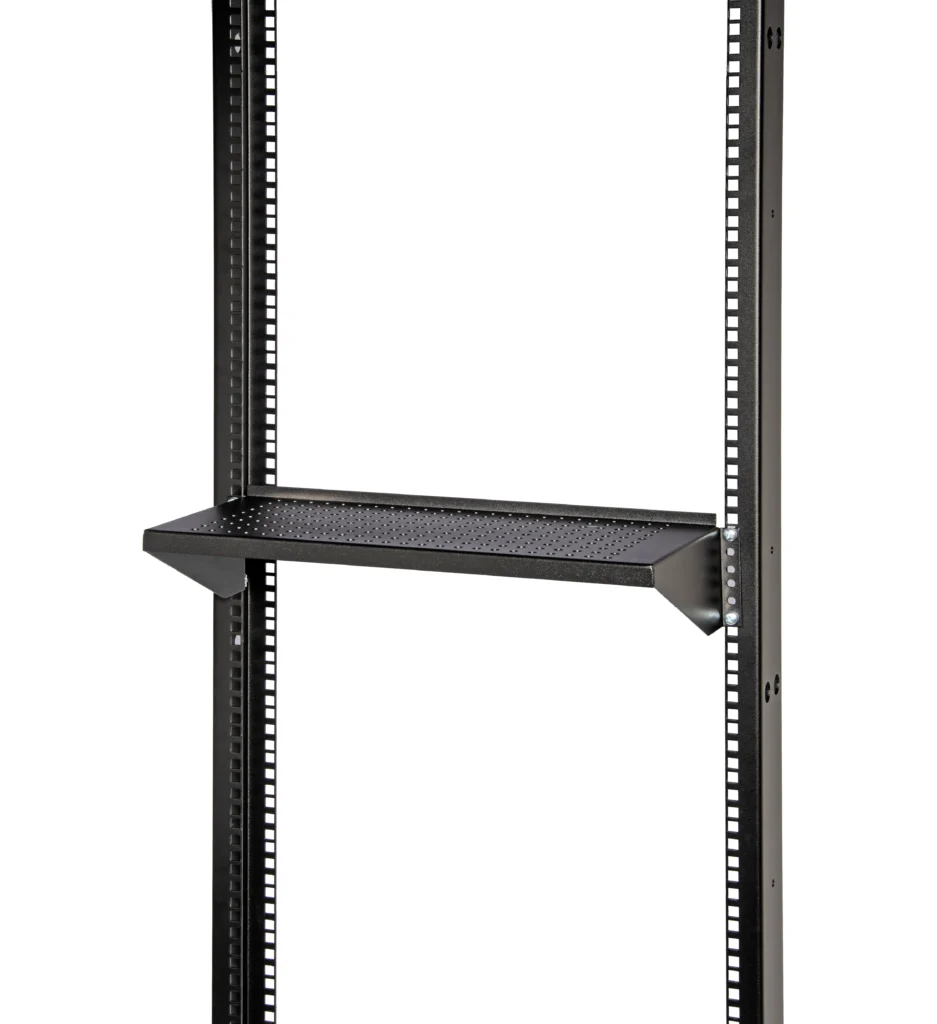

Cantilever Shelves are designed to mount to a single pair of vertical mounting rails, making them ideal for Telco racks or other 2-post rack systems. They can be installed from the front or rear of the rack, and by mounting shelves on both sides—using the (-C) option at the end of the part number—you can create one continuous, extended shelf.

Features

Made of 14GA Steel
Mounts to Vertical Rack Rails
Vent Pattern
Cantilever Shelves can be Mounted with the Flanges Up or Down
Cantilever Shelves are Designed to Hold up to 75 LBS and Back to Back Shelves 150 LBS
Standard Cantilever 12″ and 18″ Shelves Extend From the Vertical Mounting Rails Outward
Center Flanged Cantilever Shelves Extend Out From the Front as Well as Towards the Center of the Martin Telco Rack 3″ to Meet with a Like Adjacent Shelf Mounted in the Rear to Form One Continuous Shelf Either 24″ or 36″ Total
Mounting Hardware Included
Color: Black
Powder Coat Finish Available in a Variety of Standard and Custom Colors
Designed and Manufactured in the USA
Custom Sizes and Configurations Available Upon Request

Cantilever Shleves

PART NUMBER	RACK MOUNT SPACING	SHELF DEPTH	DRAWING	CAD MODEL
CS1908	19″	8″	Download	Download
CS1912	19″	12″	Download	Download
CS1918	19″	18″	Download	Download
CS2308	23″	8″	Download	Download
CS2312	23″	12″	Download	Download
CS2318	23″	18″	Download	Download
CS2408	24″	8″	Download	Download
CS2412	24″	12″	Download	Download
CS2418	24″	18″	Download	Download
CS2808	28″	8″	Download	Download
CS2812	28″	12″	Download	Download
CS2818	28″	18″	Download	Download
