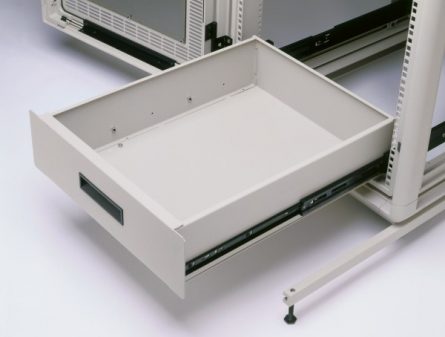

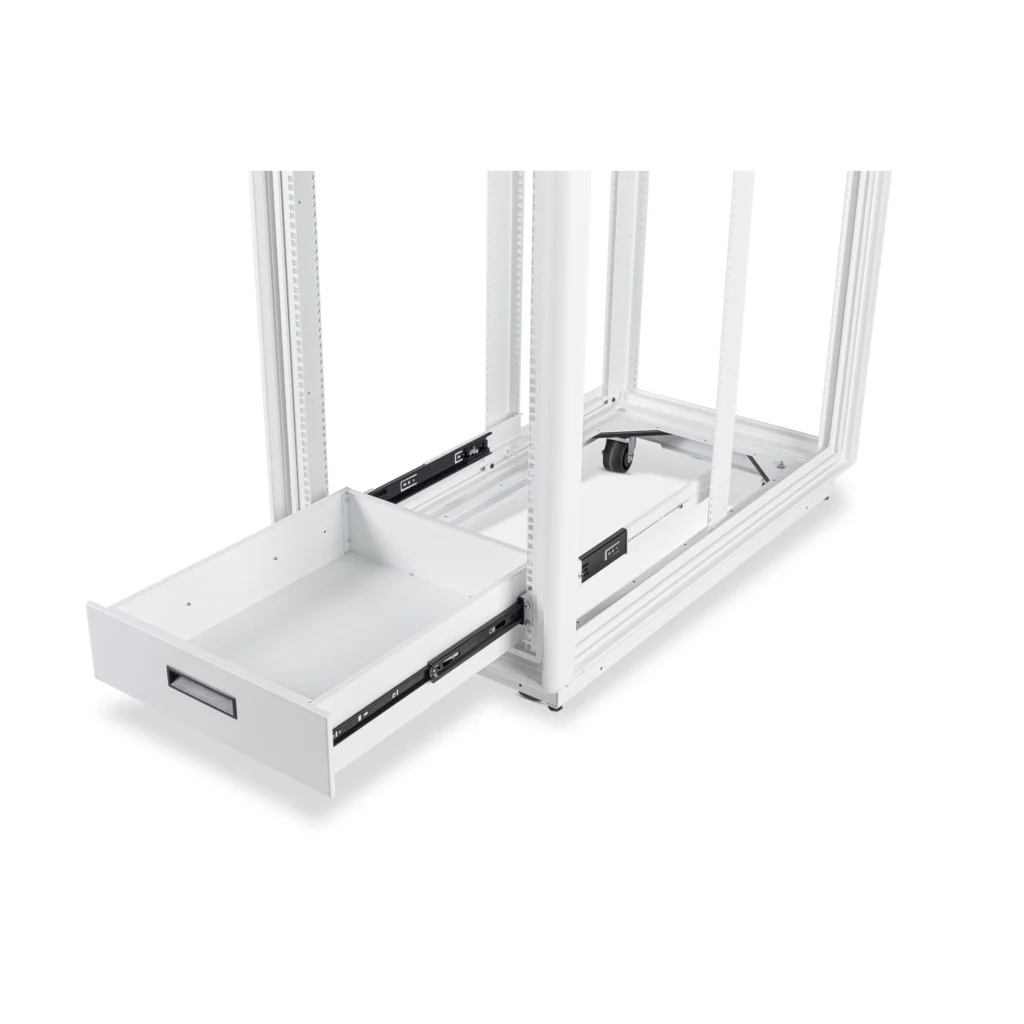

Utility Drawers are available in three standard heights—3U, 4U, and 5U—and can be configured for 19″, 23″, or 24″ rack mounting. Designed to store items such as documentation, tools, instruments, or laptops, these drawers provide convenient, organized access to essential equipment. Each drawer is mounted on smooth, durable slides, ensuring easy operation and reliable performance within any rack setup.
| PART NUMBER | RACK MOUNT SPACING | HEIGHT | DRAWER DEPTH | WEIGHT CAPACITY | DRAWING | CAD MODEL |
|---|---|---|---|---|---|---|
| UD31921 | 19″ | 3U | 21″ | 100 LBS | Download | Download |
| UD51921 | 19″ | 5U | 21″ | 100 LBS | Download | Download |
| UD71921 | 19″ | 7U | 21″ | 100 LBS | Download | Download |
| UD81921 | 19″ | 8U | 21″ | 100 LBS | Download | Download |
| UD32321 | 23″ | 3U | 21″ | 100 LBS | Download | Download |
| UD52321 | 23″ | 5U | 21″ | 100 LBS | Download | Download |
| UD72321 | 23″ | 7U | 21″ | 100 LBS | Download | Download |
| UD82321 | 23″ | 8U | 21″ | 100 LBS | Download | Download |
| UD32421 | 24″ | 3U | 21″ | 100 LBS | Download | Download |
| UD52421 | 24″ | 5U | 21″ | 100 LBS | Download | Download |
| UD72421 | 24″ | 7U | 21″ | 100 LBS | Download | Download |
| UD82421 | 24″ | 8U | 21″ | 100 LBS | Download | Download |
| UD32821 | 28″ | 3U | 21″ | 100 LBS | Download | Download |
| UD52821 | 28″ | 5U | 21″ | 100 LBS | Download | Download |
| UD72821 | 28″ | 7U | 21″ | 100 LBS | Download | Download |
| UD82821 | 28″ | 8U | 21″ | 100 LBS | Download | Download |
