When a full server cabinet isn’t necessary, two post racks offer a space efficient and cost-effective solution. Martin’s Two Post Racks provide secure, organized support for networking hardware, patch panels, and telecommunications equipment, making the most of limited floor space while keeping equipment easily accessible and professionally mounted.

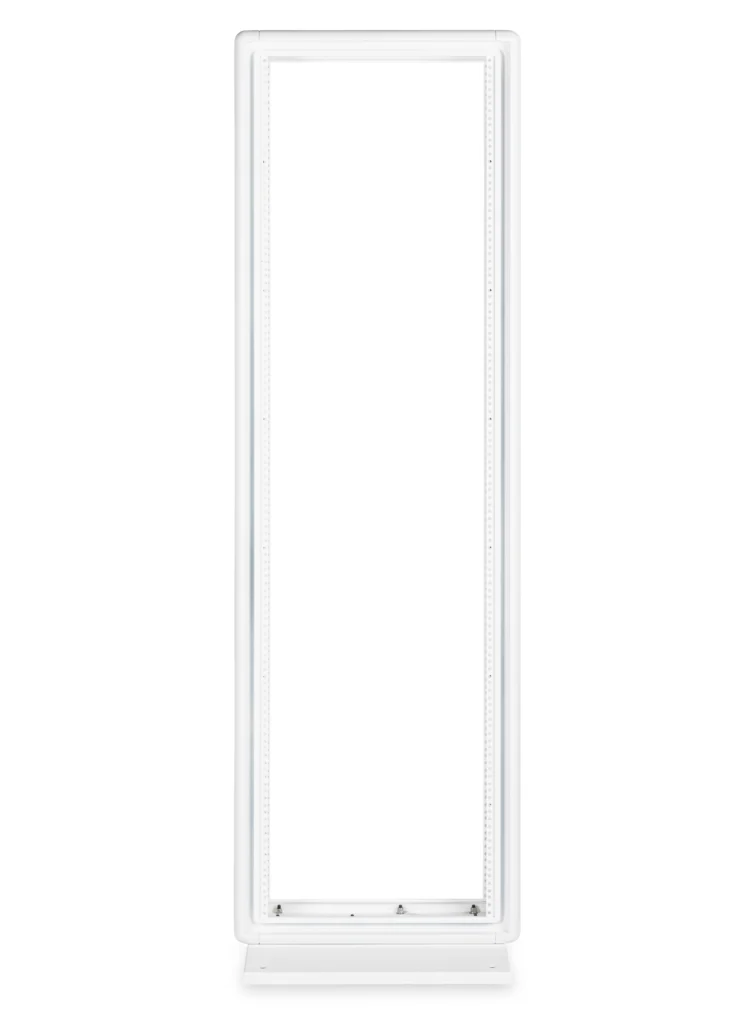

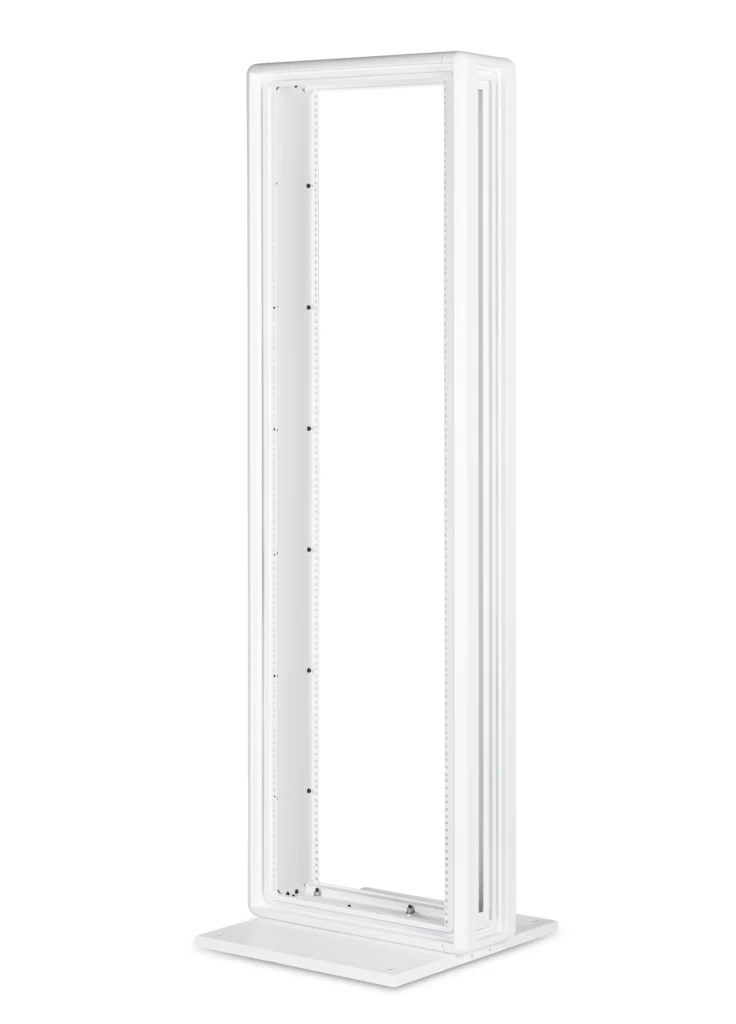

Martin offers two versions to meet a range of performance needs. The steel two post rack delivers dependable support at an economical price, making it ideal for standard networking rooms, telecom spaces, and distribution areas where durability and value are key. For higher-end installations, Martin’s aluminum telco rack, engineered using our patented aluminum extrusion platform, provides superior strength-to-weight performance and a refined appearance suited for demanding or high-visibility environments.
| PART NUMBER | HEIGHT | WIDTH | RACK MOUNT SPACING | FRAME CONSTRUCTION | DRAWING | CAD MODEL |
|---|---|---|---|---|---|---|
| TP4219 | 24U | 20.25″ | 19″ | Steel | Download | Download |
| TP4223 | 24U | 24.25″ | 23″ | Steel | Download | Download |
| TP7319 | 42U | 20.25″ | 19″ | Steel | Download | Download |
| TP7323 | 42U | 24.25″ | 23″ | Steel | Download | Download |
| TP7819 | 45U | 20.25″ | 19″ | Steel | Download | Download |
| TP7823 | 45U | 24.25″ | 23″ | Steel | Download | Download |
| TP9119 | 52U | 20.25″ | 19″ | Steel | Download | Download |
| TP9123 | 52U | 24.25″ | 23″ | Steel | Download | Download |
| T701906 | 40U | 23.33″ | 19″ | Aluminum Extrusion | Download | Download |
| T702306 | 40U | 28.33″ | 23″ | Aluminum Extrusion | Download | Download |
| T701908 | 40U | 23.33″ | 19″ | Aluminum Extrusion | Download | Download |
| T702308 | 40U | 23.33″ | 23″ | Aluminum Extrusion | Download | Download |
| T731906 | 42U | 23.33″ | 19″ | Aluminum Extrusion | Download | Download |
| T732306 | 42U | 23.33″ | 23″ | Aluminum Extrusion | Download | Download |
| T731908 | 42U | 23.33″ | 19″ | Aluminum Extrusion | Download | Download |
| T732308 | 42U | 23.33″ | 23″ | Aluminum Extrusion | Download | Download |
| T841906 | 48U | 23.33″ | 19″ | Aluminum Extrusion | Download | Download |
| T842306 | 48U | 23.33″ | 23″ | Aluminum Extrusion | Download | Download |
| T841908 | 48U | 23.33″ | 19″ | Aluminum Extrusion | Download | Download |
| T842308 | 48U | 23.33″ | 23″ | Aluminum Extrusion | Download | Download |
