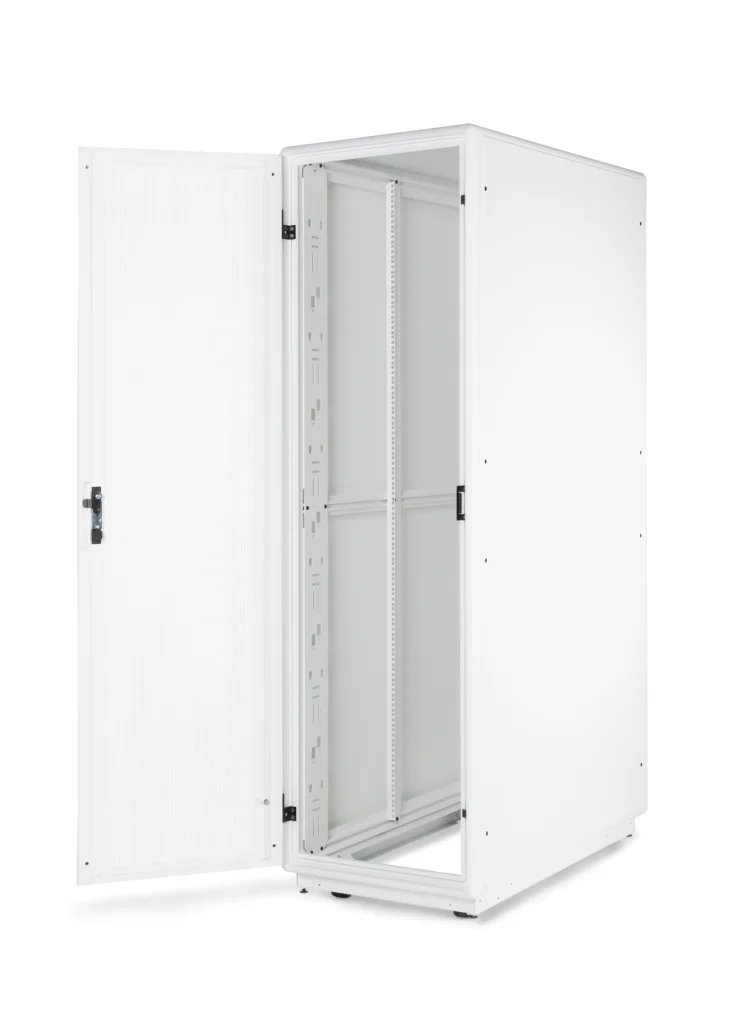

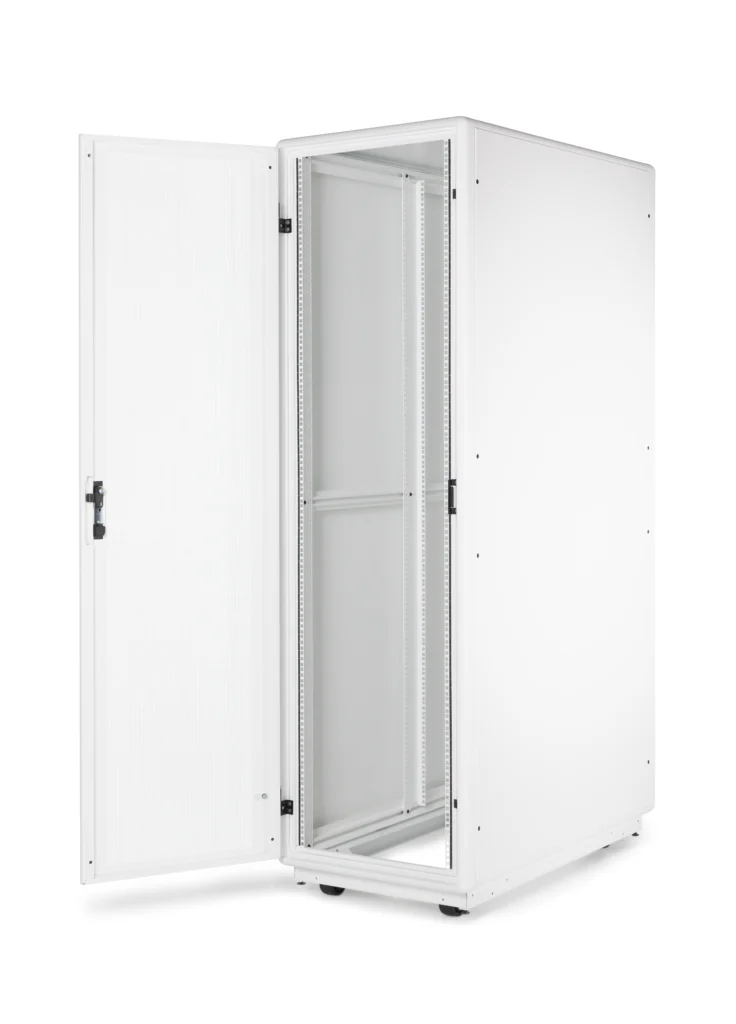

MSR-Series Server Cabinet

Engineered to support the demands of modern infrastructure, the MSR-Series Server Cabinet is a robust, deployment-ready solution designed for AI workloads, data centers, IT operations, and high-density networking environments.



Built using Martin’s patented aluminum-extruded frame technology, the MSR-Series offers exceptional structural strength while maintaining a clean, professional appearance. This advanced design provides the durable foundation required for scalable, long-term infrastructure growth.

In addition to superior rigidity, the MSR-Series creates a secure and efficiently optimized environment for mission critical equipment. Each cabinet is fully compatible with Martin’s comprehensive accessory ecosystem, including intelligent power distribution, advanced cooling options, and integrated cable management solutions, allowing you to configure your cabinet precisely to your operational needs.

Features

  • Rugged and Multifunctional Welded 6063 -T5 Aluminum Extrusion Frame Design
  • 2,000 LB Dynamic Load Capacity, 3,000 LB Static Load Capacity (HD Version Available Upon Request)
  • 19” Rack Mount Spacing
  • 24” Overall Frame Width
  • 38.42”, 44.42”, and 48.00″ Overall Depths Available
  • 24U, 40U, 42U, 44U, 48U, and 52U Height Options
  • 2 Pairs of Fully Adjustable Square Hole Mounting Rails
  • U-Label Markings

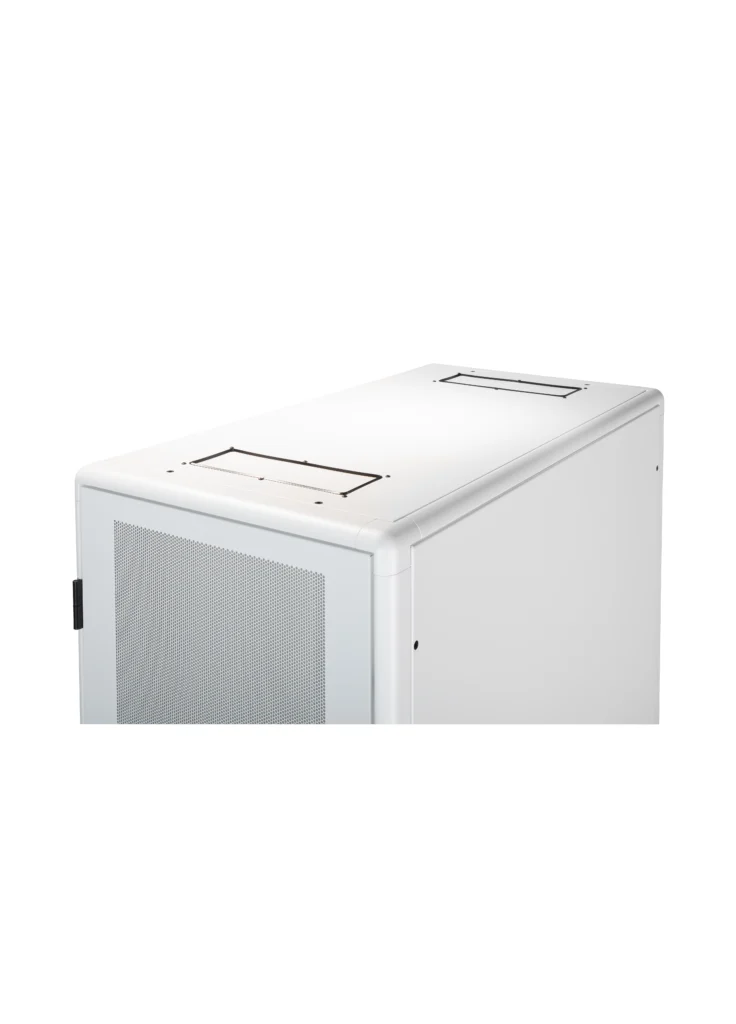

  • Solid Top Panel with (2) 12″ X 4″ Cable Access Cutouts Front and Rear with Cover Plates
  • Perforated Front and Rear Doors for Ideal Air Flow
  • Caster Base with 3″ Casters and Levelers
  • Externally Removable Bolt On Side Panels
  • (2) Lacing Panels for Mounting up to (2) Vertical PDUs on Each or Cable Management
  • Hardware Pack Included: HWM6-40
  • Supports Wide Variety of Martin Accessories
  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request

MSR-Series Server Cabinet

PART NUMBERHEIGHTWIDTHDEPTHDRAWINGCAD MODEL
MSR42203624U (1264 mm)24″ (609 mm)38.42″ (976 mm)DownloadDownload
MSR42204224U (1264 mm)24″ (609 mm)44.42″ (1128 mm)DownloadDownload
MSR42204524U (1264 mm)24″ (609 mm)48.00″ (1219 mm) DownloadDownload
MSR70203640U (1979 mm)24″ (609 mm)38.42″ (976 mm)DownloadDownload
MSR70204240U (1979 mm)24″ (609 mm)44.42″ (1128 mm)DownloadDownload
MSR70204540U (1979 mm)24″ (609 mm)48.00″ (1219 mm) DownloadDownload
MSR73203642U (2067 mm)24″ (609 mm)38.42″ (976 mm)DownloadDownload
MSR73204242U (2067 mm)24″ (609 mm)44.42″ (1128 mm)DownloadDownload
MSR73204542U (2067 mm)24″ (609 mm)48.00″ (1219 mm) DownloadDownload
MSR77203644U (2156 mm)24″ (609 mm)38.42″ (976 mm)DownloadDownload
MSR77204244U (2156 mm)24″ (609 mm)44.42″ (1128 mm)DownloadDownload
MSR77204544U (2156 mm)24″ (609 mm)48.00″ (1219 mm) DownloadDownload
MSR84203648U (2334 mm)24″ (609 mm)38.42″ (976 mm)DownloadDownload
MSR84204248U (2334 mm)24″ (609 mm)44.42″ (1128 mm)DownloadDownload
MSR84204548U (2334 mm)24″ (609 mm)48.00″ (1219 mm) DownloadDownload
MSR91203652U (2512 mm)24″ (609 mm)38.42″ (976 mm)DownloadDownload
MSR91204252U (2512 mm)24″ (609 mm)44.42″ (1128 mm)DownloadDownload
MSR91204552U (2512 mm)24″ (609 mm)48.00″ (1219 mm) DownloadDownload
