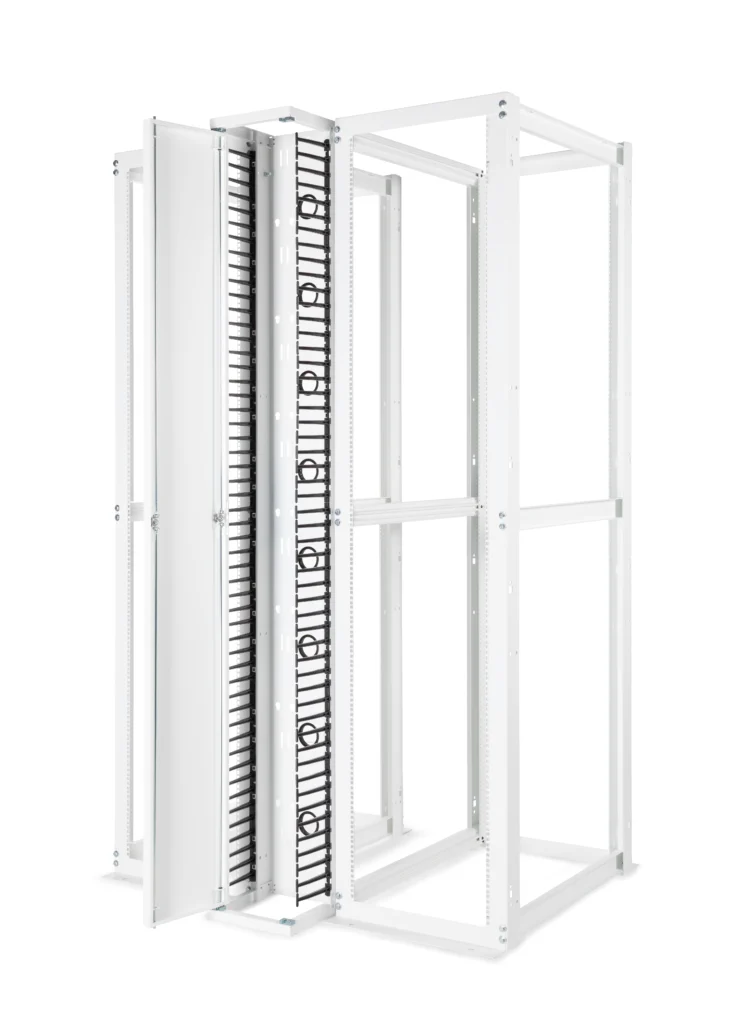

Martin’s Four Post Server Racks provide the dependable, industry standard mounting platform that data centers and network operations rely on, engineered with the precision and durability that define every Martin product. Designed for standard equipment loads and full front-to-back mounting flexibility, these racks support a wide range of servers, storage systems, network switches, and UPS units. Adjustable rear mounting rails ensure compatibility with equipment from multiple manufacturers.
Constructed from high-grade steel and finished with a durable powder coat, Martin’s four post racks deliver the structural strength required for mission critical deployments. Ideal for enterprise data centers, colocation sites, and telecom environments, they offer reliable performance and long-term value at a competitive price point.
| PART NUMBER | HEIGHT | WIDTH | DEPTH | DRAWING | CAD MODEL |
|---|---|---|---|---|---|
| FP241924 | 24U | 23.25″ | 24.00″ | Download | Download |
| FP241930 | 24U | 23.25″ | 30.00″ | Download | Download |
| FP241936 | 24U | 23.25″ | 36.00″ | Download | Download |
| FP241942 | 24U | 23.25″ | 42.00″ | Download | Download |
| FP731924 | 42U | 23.25″ | 24.00″ | Download | Download |
| FP731930 | 42U | 23.25″ | 30.00″ | Download | Download |
| FP731936 | 42U | 23.25″ | 36.00″ | Download | Download |
| FP731942 | 42U | 23.25″ | 42.00″ | Download | Download |
| FP781924 | 45U | 23.25″ | 24.00″ | Download | Download |
| FP781930 | 45U | 23.25″ | 30.00″ | Download | Download |
| FP781936 | 45U | 23.25″ | 36.00″ | Download | Download |
| FP781942 | 45U | 23.25″ | 42.00″ | Download | Download |
| FP911924 | 52U | 23.25″ | 24.00″ | Download | Download |
| FP911930 | 52U | 23.25″ | 30.00″ | Download | Download |
| FP911936 | 52U | 23.25″ | 36.00″ | Download | Download |
| FP911942 | 52U | 23.25″ | 42.00″ | Download | Download |
| FP1051924 | 60U | 23.25″ | 24.00″ | Download | Download |
| FP1051930 | 60U | 23.25″ | 30.00″ | Download | Download |
| FP1051936 | 60U | 23.25″ | 36.00″ | Download | Download |
| FP1051942 | 60U | 23.25″ | 42.00″ | Download | Download |
