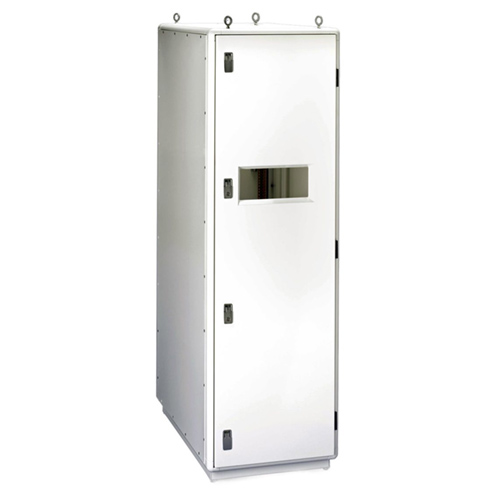

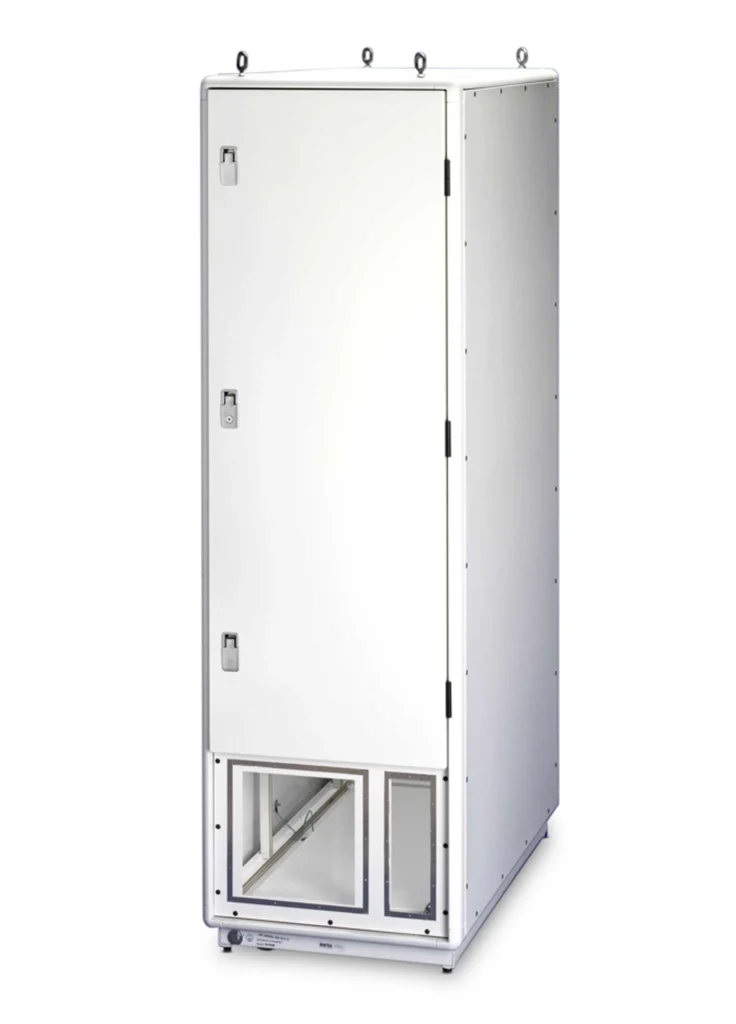

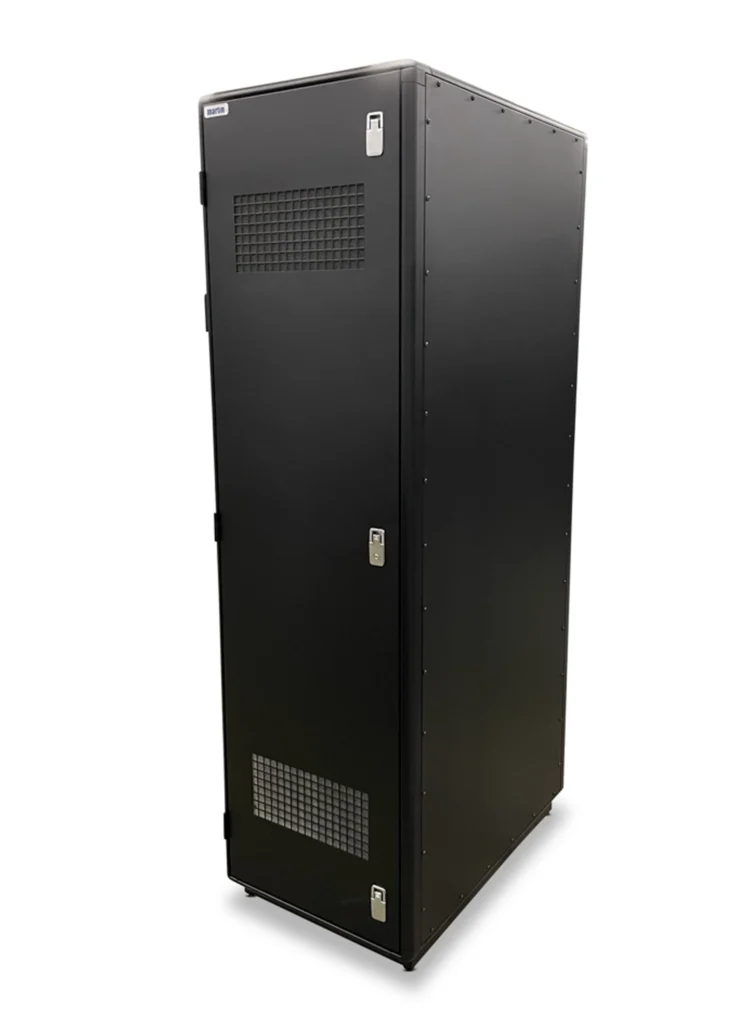

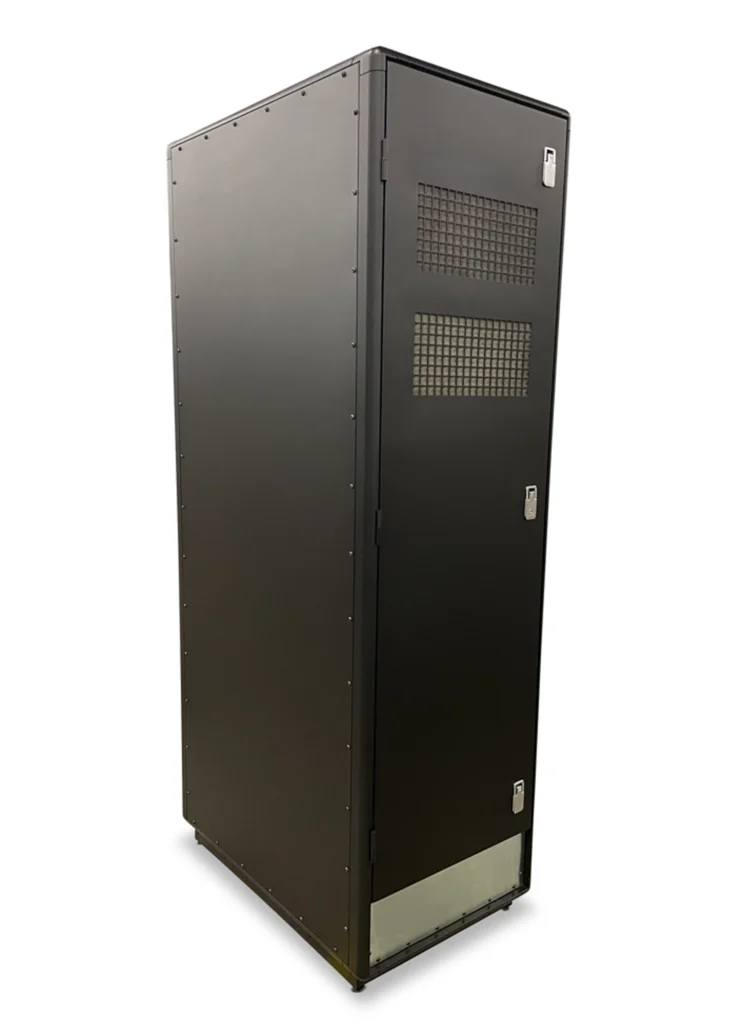

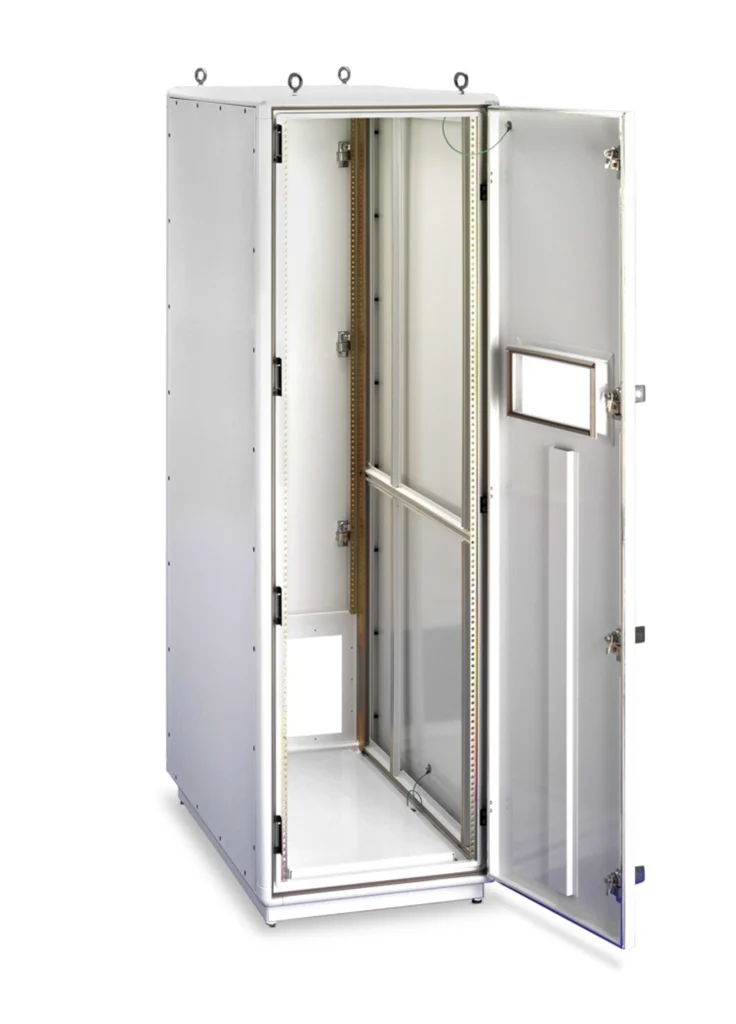

EMI/RFI Shielded Enclosures

Electromagnetic and radio frequency interference can disrupt equipment, compromise data integrity, and create operational vulnerabilities. Martin’s EMI/RFI Shielded Enclosures provide engineered protection, ensuring sensitive equipment operates in a controlled electronic environment.

Martin offers shielded enclosures at two performance levels to match regulatory and operational needs. Standard enclosures meet typical FCC requirements for commercial and industrial applications, while military grade enclosures are engineered to MIL-STD standards, delivering the verified attenuation needed for national security, mission critical operations, and extreme interference environments.

Features

  • Rugged and Multifunctional Welded 6063 – T5 Aluminum Extrusion Frame Design
  • 2,000 LB Dynamic Load Capacity, 3,000 LB Static Load Capacity (HD Version Available Upon Request)
  • 19” Rack Mount Spacing
  • 24” Overall Frame Width
  • 32.42″, 38.42”, and 44.42” Overall Depths Available
  • 24U, 40U, 42U, 44U, and 48U Height Options
  • 2 Pairs of Fully Adjustable Clear Zinc Plated Square Hole Mounting Rails
  • Solid Top Panel With Clear Zinc I/O Panel
  • 4U Clear Zinc I/O Panel Below Rear Door
  • Front Door With Intake Filter (FCC Version: Aluminum Washable Filter, Military Version: Honeycomb Filter)

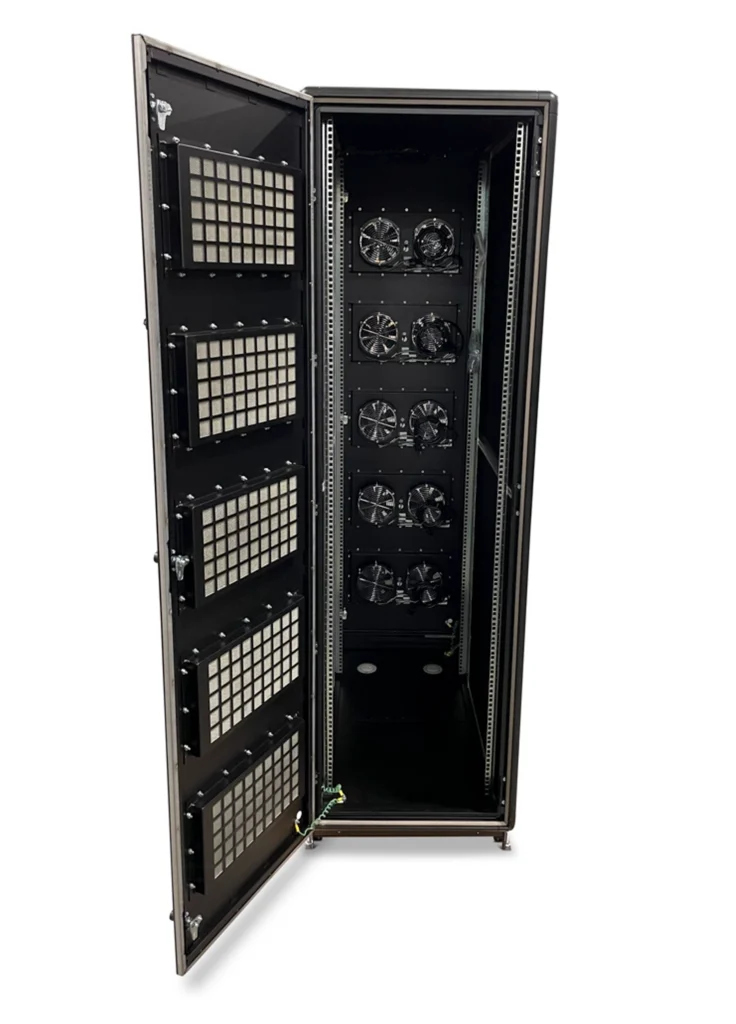

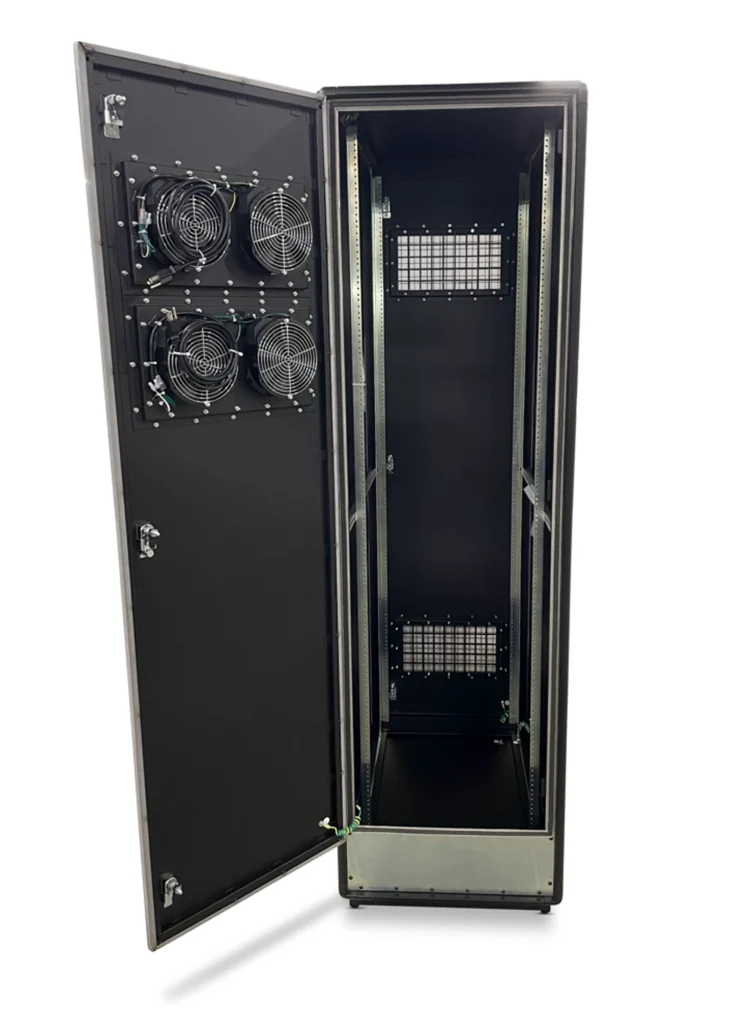

  • Fan Exhaust Rear Door With (4) 115V, 105 CFM Fans
  • Military Version Utilizes Knitted Wire Mesh Gasketing Foam Gasketing on All Door and Panels
  • FCC Version Utilizes Nickel-Copper Clad Fabric Over Foam Gasketing on All Doors and Panels
  • Ground Straps to All Panels and Doors
  • Caster Base with 3″ Casters and Levelers
  • Externally Removable Bolt On Side Panels
  • Hardware Pack Included: HWM6-40
  • Supports Wide Variety of Martin Accessories
  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request
  • EMI Cabinets Have Not Been Formally Lab Tested and Are Designed to Meet Industry Level EMI Shielding Standards

EMI/RFI Shielded Enclosures

Part NumberPanel Opening HeightRackmount WidthInternal DepthDrawingCAD Model
NonenonenonenoneDownloadRequest Info
