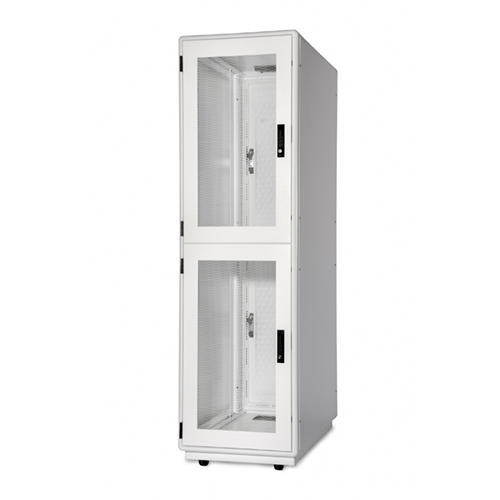

Colocation Server Cabinets

Martin Enclosures’ Colocation Server Cabinets deliver the ideal blend of flexibility, security, and innovation for network, internet, and application service providers. Engineered to safeguard your mission critical equipment, these cabinets provide robust physical protection and complete peace of mind in any hosted environment.

Our colocation cabinets are among the most adaptable solutions available today. Each enclosure can be easily reconfigured from 2 to 3 to 4 bays—and back again—with minimal effort, ensuring your infrastructure can scale as your customer base grows.

Designed with enhanced security in mind, Martin Colocation Enclosures create fully separated compartments for each tenant’s equipment and cabling. This ensures complete isolation, reduces the risk of unauthorized access, and maintains a clean, organized environment within shared facilities.

Features

  • Rugged and Multifunctional Welded 6063 – T5 Aluminum Extrusion Frame Design
  • 2,000 LB Dynamic Load Capacity, 3,000 LB Static Load Capacity (HD Version Available Upon Request)
  • 19” Rack Mount Spacing
  • 24” Overall Frame Width
  • 38.42”, 44.42”, and 48.00″ Overall Depths Available
  • 30U-60U Height Options
  • 2 or 3 Pairs of Fully Adjustable Square Hole Mounting Rails
  • Special Top and Bottom Panels to Allow for Wire and Cable Entry to Separate Bays
  • Horizontal Security Panels to Separate Bays
  • Secure Wire and Cable Management to Each Bay From Either Top or Bottom
  • Field Reversible Doors When Specified
  • Each Bay Can be Keyed Separately with Optional Master Key or Equipped With a Combo Swing Handle
  • Perforated Front and Rear Doors for Ideal Air Flow
  • Caster Base with 3″ Casters and Levelers
  • Externally Removable Bolt On Side Panels
  • Hardware Pack Included: HWM6-40
  • Supports Wide Variety of Martin Accessories
  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request

Colocation Server Cabinets

Part NumberPanel Opening HeightRackmount WidthInternal DepthDrawingCAD Model
NonenonenonenoneDownloadRequest Info
