Bus Bars

Martin Rack Bus Bars provide a reliable and centralized grounding solution for all components and installed equipment within a server or network enclosure. Designed to ensure consistent electrical safety and system protection, these bus bars offer a durable and convenient point of connection for grounding multiple devices.

Engineered for strength, ease of installation, and compatibility with Martin’s enclosures, our bus bars help maintain proper grounding standards while supporting the overall integrity and performance of your IT infrastructure.

Features

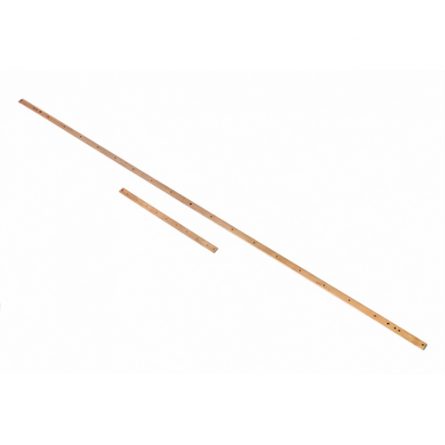

  • Copper Bus Bars Come in Horizontal 19”, 23”, or 24” Rack Mount Versions as Well as Vertical Sizes for Each Height of the Cabinet
  • Available in Isolated or Non Isolated Types
  • Isolated and Non Isolated Styles Include ¼” thick and 1” wide copper with 10-32 tapped holes
  • Isolated Bus Bars Come with Nylon Shoulder Washers and Nylon Flat Washers to Isolate from Frame

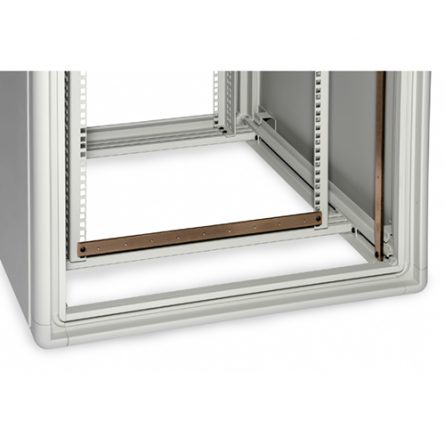

  • Vertical Bus Bars Mount to Upper and Lower Frame Member and Center Stiffener
  • Horizontal Bus Bars Mount to Vertical Mounting Rails

Bus Bars

PART NUMBERRACK HEIGHTFORM FACTORDRAWINGCAD MODEL
BB19-H1UHorizontalDownloadDownload
BB1214UVerticalDownloadDownload
BB3520UVerticalDownloadDownload
BB4224UVerticalDownloadDownload
BB5230UVerticalDownloadDownload
BB6135UVerticalDownloadDownload
BB7040UVerticalDownloadDownload
BB7342UVerticalDownloadDownload
BB7744UVerticalDownloadDownload
BB8448UVerticalDownloadDownload
BB9152UVerticalDownloadDownload
