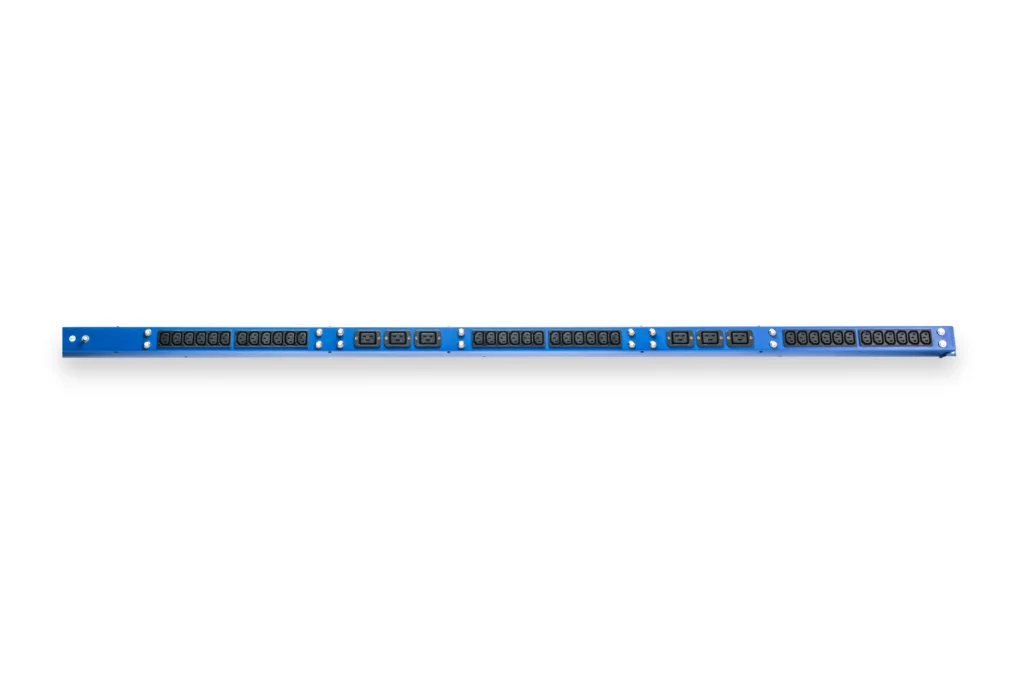

Basic Vertical Power Strips

Martin’s Vertical Power Strips, available in standard and custom configurations, are designed to seamlessly integrate with our server racks and rackmount enclosures, delivering the same quality and flexibility you expect from Martin.

Reliable power distribution is critical in data centers, where even brief interruptions can lead to downtime, data loss, and operational disruptions. Martin’s vertical power strips provide efficient, organized power delivery within any enclosure, helping to ensure continuous uptime for servers, networking equipment, and storage systems. By optimizing power allocation and minimizing cabling, these strips support high performance operations while reducing the risk of overloads, electrical faults, and inefficient energy use—protecting both equipment and business continuity.

Features

  • All of Martin’s Power Distribution Units are UL/ETL 60950 Approved and Tested
  • Completely Adaptable Vertical PDUs and Box Sizes Can be Designed to Fit Any Mounting Application
  • Input Power Options Include Via Cord and Plug, Input Receptacle or Hardwire Terminal Blocks
  • Single Phase 120V, 208 and 230V; 120/208 3-phase, up to 100A
  • Various Input and Power Cord Solutions

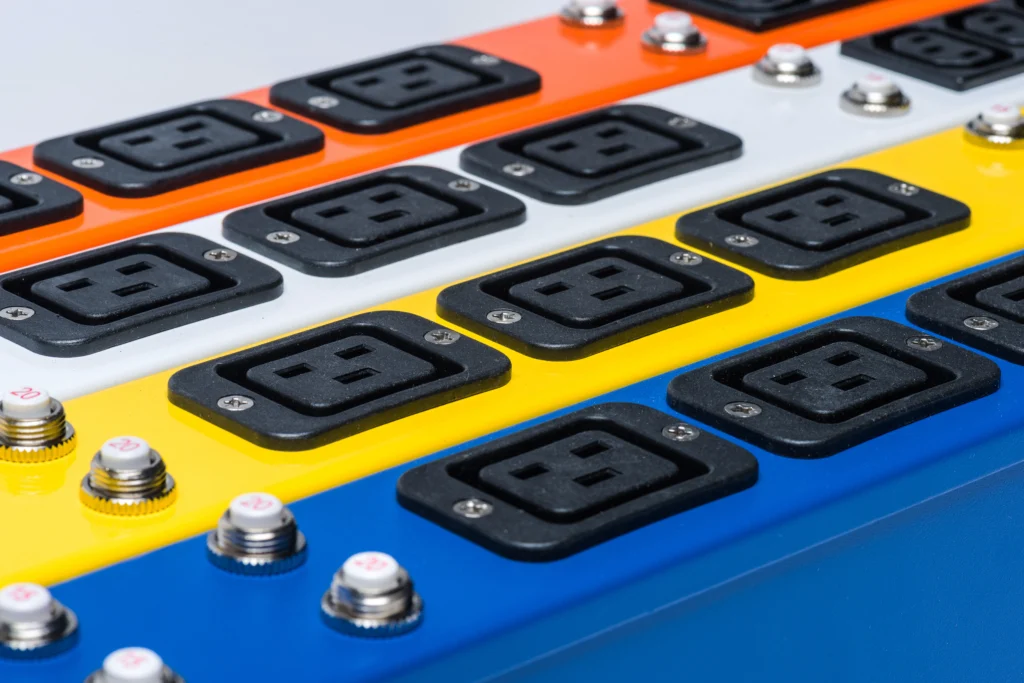

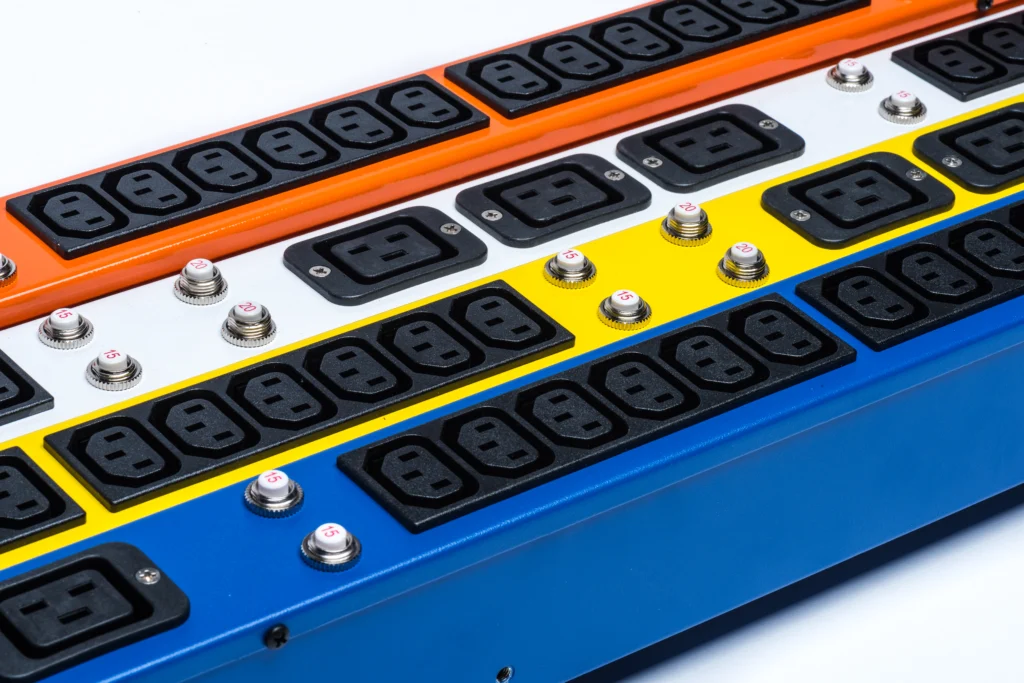

  • Output Receptacles Options Includes all NEMA straight and Twist Lock Styles, as well as IEC320 C13 and C19, in Any Combination
  • Over-Current Alarm LEDs
  • Standard RMS and “Peak” Level Metering with Options for RS232/RS485 Interface

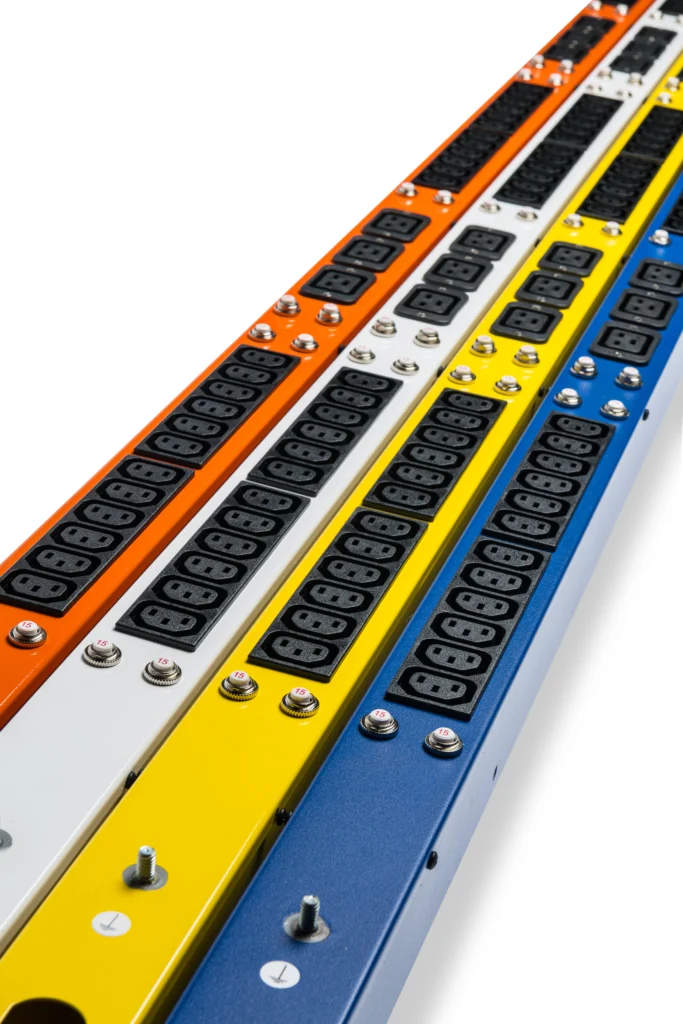

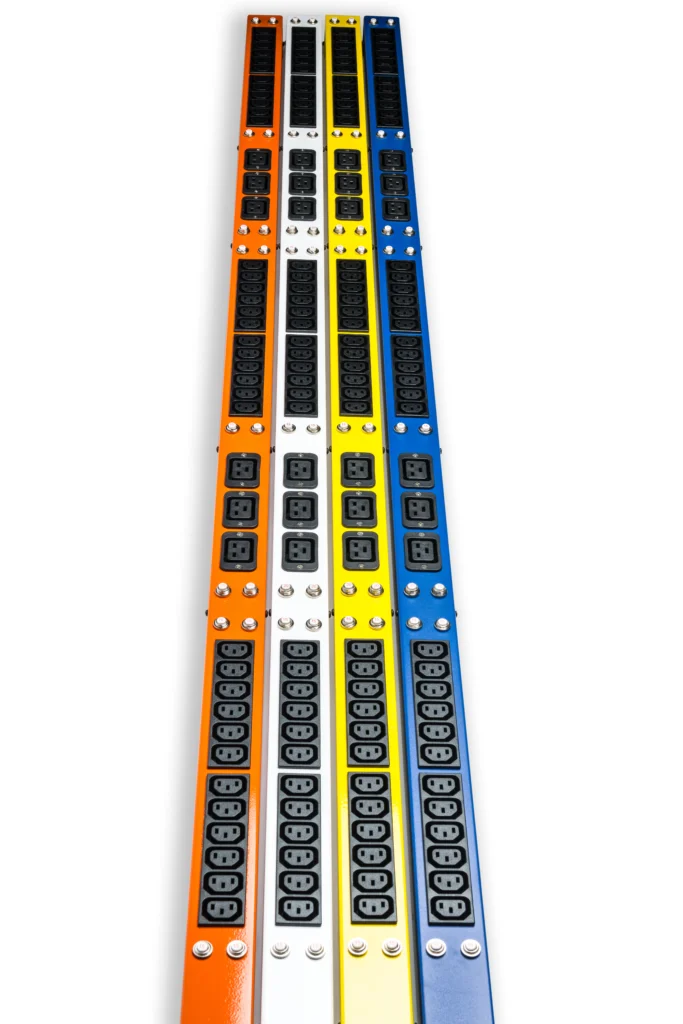

  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request

Basic Vertical Power Strips

PART NUMBERPOWER PHASEVOLTAGEPOWER RATINGINPUT PLUGOUTLETSFORM FACTORDRAWINGCAD MODEL
PSM42-10-6-15 Single Phase115V15ANEMA 5-15P(10) 5-15R0UDownloadDownload
PSM42-10-6-20Single Phase115V20ANEMA 5-20P(10) 5-15R0UDownloadDownload
PSM70-11-6-15Single Phase115V15ANEMA 5-15P(11) 5-15R0UDownloadDownload
PS7015-20Single Phase115V15ANEMA 5-15P(20) 5-15R0UDownloadDownload
PSM7020-15-20-1Single Phase115V20ANEMA 5-20P(20) 5-20R0UDownloadDownload
PSM70-20-20-TLSingle Phase115V20AL5-20P(20) 5-20R0UDownloadDownload
PSM70115-20-AF1Single Phase115V20AL5-20P(24) 5-20R0UDownloadDownload
PSM70115-30-AF1Single Phase115V30AL5-30P(24) 5-20R0UDownloadDownload
PSM702023032C13Single Phase230V20AL6-20P(32) C13, (6) C190UDownloadDownload
PSM7022030C13-1Single Phase230V30AL6-30P(36) C130UDownloadDownload
PSM7022030C1319Single Phase230V30AL6-30P(24) C13, (4) C190UDownloadDownload
PSM70-3P-20A-21Three-Phase120/208V20AL21-20P(21) NEMA 5-20R0UDownloadDownload
PSM70-3P-30A-24Three-Phase120/208V30AL21-30P(24) NEMA 5-20R0UDownloadDownload
PSM70208P3-20-1Three-Phase120/208V20AL21-20P(18) C130UDownloadDownload
PSM70208P3-30-1Three-Phase120/208V30AL21-30P(18) C130UDownloadDownload
PSM70208P3-60-1Three-Phase120/208V60AIEC60309(36) C130UDownloadDownload
