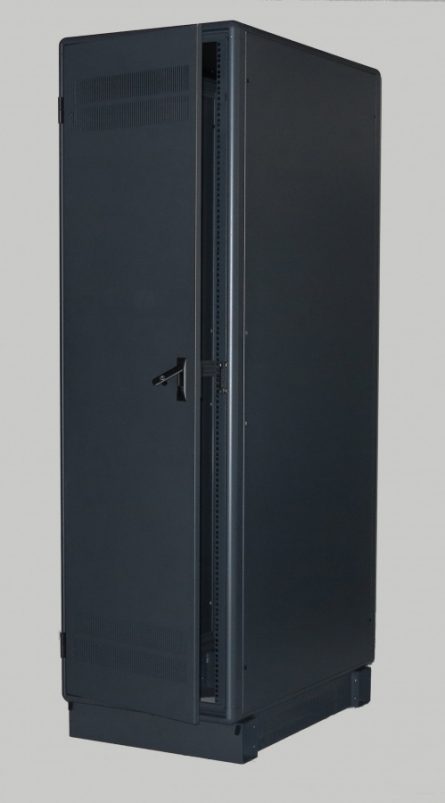

Vented steel doors feature vented patterns at both the top and bottom, each with removable airflow panels to control where air enters or exits the enclosure. These doors provide a cost-effective way to secure a cabinet while allowing minimal ventilation. Each door comes with a standard lockable swing-handle latch and lift-off left-hand hinges, with right-hand hinging available upon request.
| PART NUMBER | RACK HEIGHT | RACK WIDTH | DRAWING | CAD MODEL |
|---|---|---|---|---|
| VD4220 | 24U | 24″ | Download | Download |
| VD5220 | 30U | 24″ | Download | Download |
| VD6120 | 35U | 24″ | Download | Download |
| VD7020 | 40U | 24″ | Download | Download |
| VD7320 | 42U | 24″ | Download | Download |
| VD7720 | 44U | 24″ | Download | Download |
| VD8420 | 48U | 24″ | Download | Download |
| VD9120 | 52U | 24″ | Download | Download |
| VD4224 | 24U | 28″ | Download | Download |
| VD5224 | 30U | 28″ | Download | Download |
| VD6124 | 35U | 28″ | Download | Download |
| VD7024 | 40U | 28″ | Download | Download |
| VD7324 | 42U | 28″ | Download | Download |
| VD7724 | 44U | 28″ | Download | Download |
| VD8424 | 48U | 28″ | Download | Download |
| VD9124 | 52U | 28″ | Download | Download |
| VD4228 | 24U | 32″ | Download | Download |
| VD5228 | 30U | 32″ | Download | Download |
| VD6128 | 35U | 32″ | Download | Download |
| VD7028 | 40U | 32″ | Download | Download |
| VD7328 | 42U | 32″ | Download | Download |
| VD7728 | 44U | 32″ | Download | Download |
| VD8428 | 48U | 32″ | Download | Download |
| VD9128 | 52U | 32″ | Download | Download |
