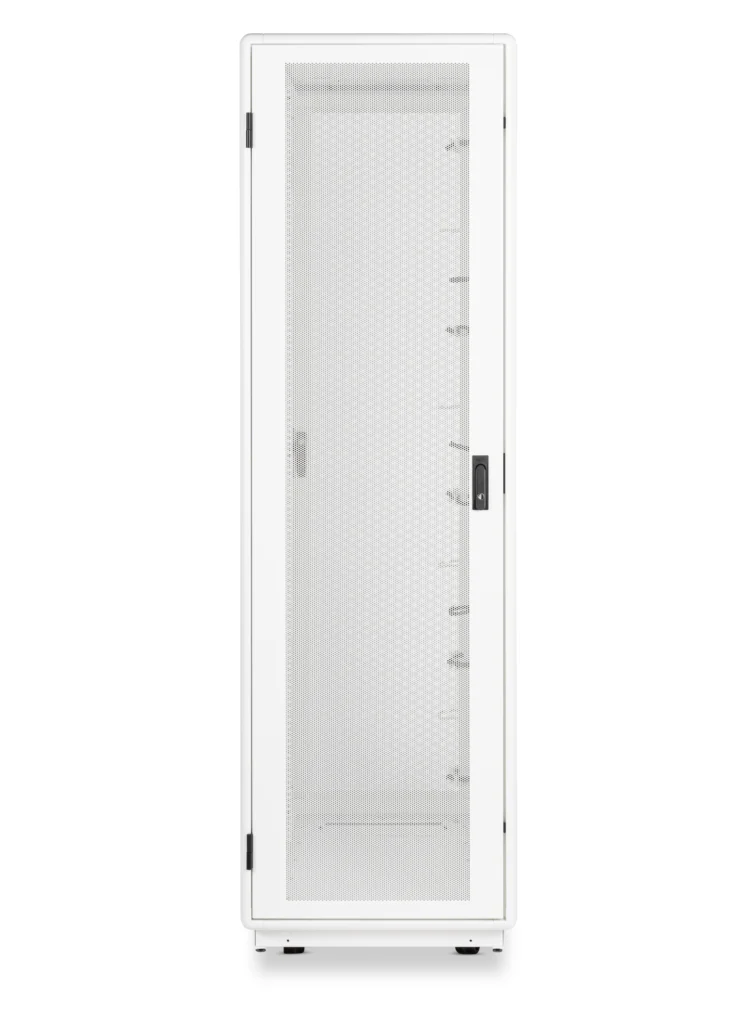

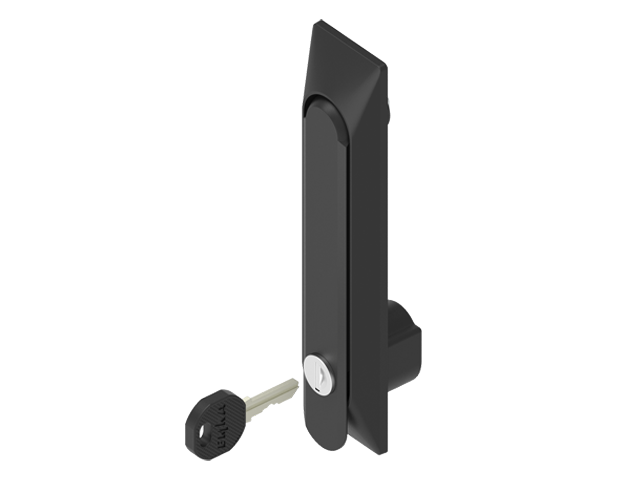

Steel Perforated Doors feature a sturdy steel frame with perforated inserts for superior ventilation, available in 63% or 78% open area options. Each door comes with a standard lockable swing-handle latch and lift-off left-hand hinges, with right-hand hinging available upon request.
| PART NUMBER | RACK HEIGHT | RACK WIDTH | INSERT TYPE | DRAWING | CAD MODEL |
|---|---|---|---|---|---|
| SPD4220 | 24U | 24″ | Perforated | Download | Download |
| SPD5220 | 30U | 24″ | Perforated | Download | Download |
| SPD6120 | 35U | 24″ | Perforated | Download | Download |
| SPD7020 | 40U | 24″ | Perforated | Download | Download |
| SPD7320 | 42U | 24″ | Perforated | Download | Download |
| SPD7720 | 44U | 24″ | Perforated | Download | Download |
| SPD8420 | 48U | 24″ | Perforated | Download | Download |
| SPD9120 | 52U | 24″ | Perforated | Download | Download |
| SPD4224 | 24U | 28″ | Perforated | Download | Download |
| SPD5224 | 30U | 28″ | Perforated | Download | Download |
| SPD6124 | 35U | 28″ | Perforated | Download | Download |
| SPD7024 | 40U | 28″ | Perforated | Download | Download |
| SPD7324 | 42U | 28″ | Perforated | Download | Download |
| SPD7724 | 44U | 28″ | Perforated | Download | Download |
| SPD8424 | 48U | 28″ | Perforated | Download | Download |
| SPD9124 | 52U | 28″ | Perforated | Download | Download |
| SPD4228 | 24U | 32″ | Perforated | Download | Download |
| SPD5228 | 30U | 32″ | Perforated | Download | Download |
| SPD6128 | 35U | 32″ | Perforated | Download | Download |
| SPD7028 | 40U | 32″ | Perforated | Download | Download |
| SPD7328 | 42U | 32″ | Perforated | Download | Download |
| SPD7728 | 44U | 32″ | Perforated | Download | Download |
| SPD8428 | 48U | 32″ | Perforated | Download | Download |
| SPD9128 | 52U | 32″ | Perforated | Download | Download |
