Solid top panels provide a simple, secure enclosure top when cable access or ventilation is not needed. They also help prevent items from falling into the enclosure, which is especially useful for shorter cabinets. For added flexibility, solid top panels can be configured with various cable access cutouts, grommets, and cover plates to allow cables to pass through while maintaining a clean, organized appearance.
| PART NUMBER | RACK WIDTH | RACK DEPTH | CABLE ACCESS | DRAWING | CAD MODEL |
|---|---|---|---|---|---|
| ST2024 | 24″ | 24″ | None | Download | Download |
| ST2030 | 24″ | 30″ | None | Download | Download |
| ST2036 | 24″ | 36″ | None | Download | Download |
| ST2042 | 24″ | 42″ | None | Download | Download |
| ST2045 | 24″ | 45″ | None | Download | Download |
| ST2424 | 28″ | 24″ | None | Download | Download |
| ST2430 | 28″ | 30″ | None | Download | Download |
| ST2436 | 28″ | 36″ | None | Download | Download |
| ST2442 | 28″ | 42″ | None | Download | Download |
| ST2445 | 28″ | 45″ | None | Download | Download |
| ST2424 | 28″ | 24″ | None | Download | Download |
| ST2430 | 28″ | 30″ | None | Download | Download |
| ST2436 | 28″ | 36″ | None | Download | Download |
| ST2442 | 28″ | 42″ | None | Download | Download |
| ST2445 | 28″ | 45″ | None | Download | Download |
| ST2824 | 32″ | 24″ | None | Download | Download |
| ST2830 | 32″ | 30″ | None | Download | Download |
| ST2836 | 32″ | 36″ | None | Download | Download |
| ST2842 | 32″ | 42″ | None | Download | Download |
| ST2845 | 32″ | 45″ | None | Download | Download |
| ST2824 | 32″ | 24″ | None | Download | Download |
| ST2830 | 32″ | 30″ | None | Download | Download |
| ST2836 | 32″ | 36″ | None | Download | Download |
| ST2842 | 32″ | 42″ | None | Download | Download |
| ST2845 | 32″ | 45″ | None | Download | Download |

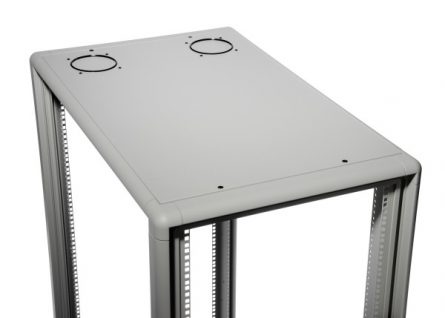

| ST2024-2HC | 24″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2030-2HC | 24″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2036-2HC | 24″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2042-2HC | 24″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2045-2HC | 24″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2424-2HC | 28″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2430-2HC | 28″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2436-2HC | 28″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2442-2HC | 28″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2445-2HC | 28″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2424-2HC | 28″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2430-2HC | 28″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2436-2HC | 28″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2442-2HC | 28″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2445-2HC | 28″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2824-2HC | 32″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2830-2HC | 32″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2836-2HC | 32″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2842-2HC | 32″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2845-2HC | 32″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2824-2HC | 32″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2830-2HC | 32″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2836-2HC | 32″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2842-2HC | 32″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2845-2HC | 32″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| ST2024-2CA | 24″ | 24″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2030-2CA | 24″ | 30″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2036-2CA | 24″ | 36″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2042-2CA | 24″ | 42″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2045-2CA | 24″ | 45″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2424-2CA | 28″ | 24″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2430-2CA | 28″ | 30″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2436-2CA | 28″ | 36″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2442-2CA | 28″ | 42″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2445-2CA | 28″ | 45″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2424-2CA | 28″ | 24″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2430-2CA | 28″ | 30″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2436-2CA | 28″ | 36″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2442-2CA | 28″ | 42″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2445-2CA | 28″ | 45″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2824-2CA | 32″ | 24″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2830-2CA | 32″ | 30″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2836-2CA | 32″ | 36″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2842-2CA | 32″ | 42″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2845-2CA | 32″ | 45″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2824-2CA | 32″ | 24″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2830-2CA | 32″ | 30″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2836-2CA | 32″ | 36″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2842-2CA | 32″ | 42″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2845-2CA | 32″ | 45″ | 12″X4″ Cutout at Front/Rear | Download | Download |
| ST2024-4HC | 24″ | 24″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2030-4HC | 24″ | 30″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2036-4HC | 24″ | 36″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2042-4HC | 24″ | 42″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2045-4HC | 24″ | 45″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2424-4HC | 28″ | 24″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2430-4HC | 28″ | 30″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2436-4HC | 28″ | 36″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2442-4HC | 28″ | 42″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2445-4HC | 28″ | 45″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2424-4HC | 28″ | 24″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2430-4HC | 28″ | 30″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2436-4HC | 28″ | 36″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2442-4HC | 28″ | 42″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2445-4HC | 28″ | 45″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2824-4HC | 32″ | 24″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2830-4HC | 32″ | 30″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2836-4HC | 32″ | 36″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2842-4HC | 32″ | 42″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2845-4HC | 32″ | 45″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2824-4HC | 32″ | 24″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2830-4HC | 32″ | 30″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2836-4HC | 32″ | 36″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2842-4HC | 32″ | 42″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2845-4HC | 32″ | 45″ | 4.5″ Round Hole in Each Corner | Download | Download |
| ST2024-4CA | 24″ | 24″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2030-4CA | 24″ | 30″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2036-4CA | 24″ | 36″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2042-4CA | 24″ | 42″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2045-4CA | 24″ | 45″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2424-4CA | 28″ | 24″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2430-4CA | 28″ | 30″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2436-4CA | 28″ | 36″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2442-4CA | 28″ | 42″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2445-4CA | 28″ | 45″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2424-4CA | 28″ | 24″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2430-4CA | 28″ | 30″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2436-4CA | 28″ | 36″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2442-4CA | 28″ | 42″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2445-4CA | 28″ | 45″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2824-4CA | 32″ | 24″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2830-4CA | 32″ | 30″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2836-4CA | 32″ | 36″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2842-4CA | 32″ | 42″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2845-4CA | 32″ | 45″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2824-4CA | 32″ | 24″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2830-4CA | 32″ | 30″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2836-4CA | 32″ | 36″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2842-4CA | 32″ | 42″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
| ST2845-4CA | 32″ | 45″ | 12″X4″ Cutout at Front/Rear, 24″X4″ Cutouts From Front to Rear | Download | Download |
