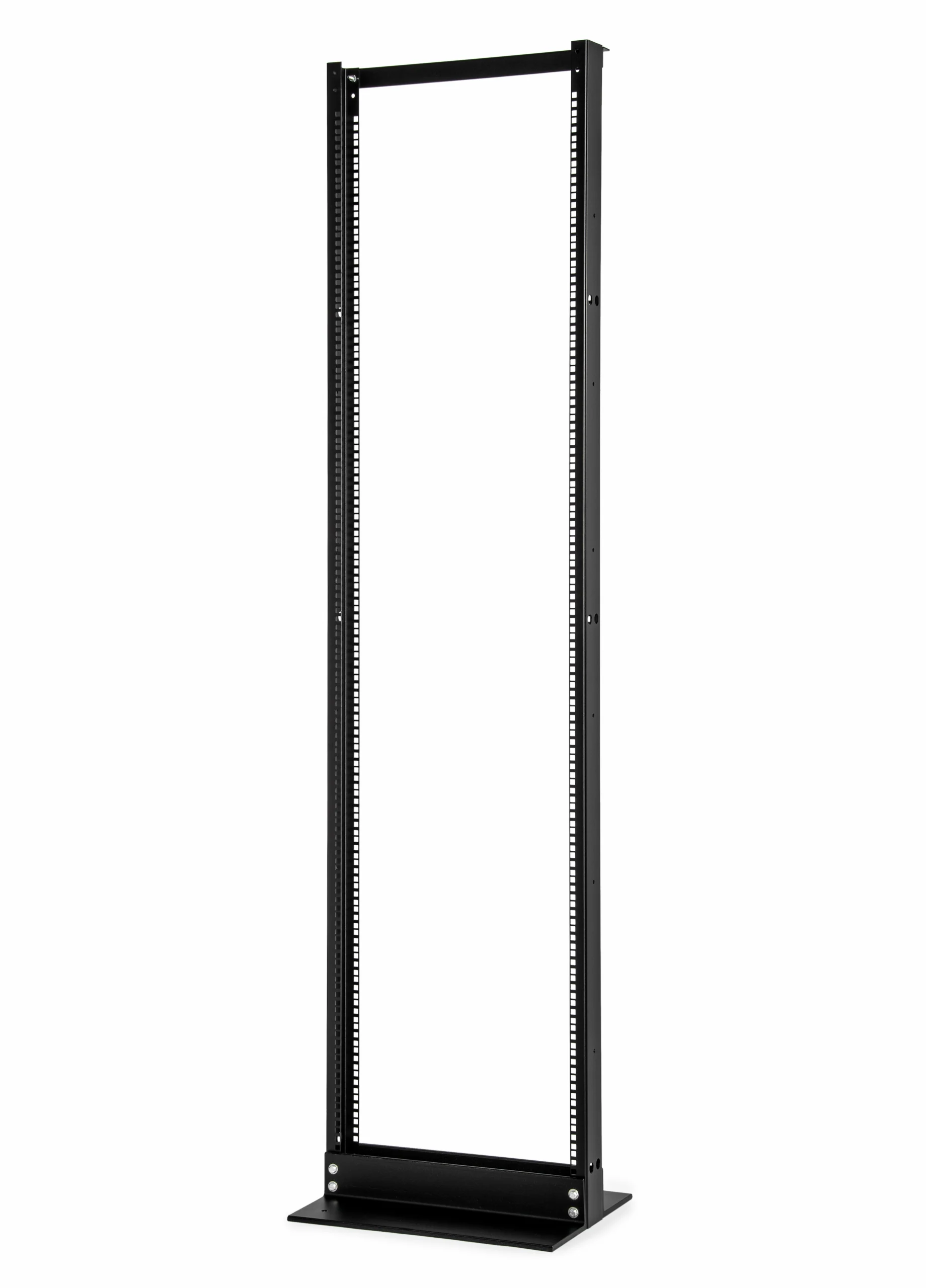

Seismic Two-Post Racks

When telecommunications infrastructure must remain operational during seismic events, standard racks aren’t sufficient. Martin’s NEBS Zone 4 Two Post Seismic Rack provides verified seismic protection for mission critical networking and telecom equipment in the most demanding environments.

Built with fully welded steel, this rack eliminates the vulnerabilities of bolted assemblies and is engineered from the ground up to meet Bellcore NEBS GR-63-CORE Zone 4—the industry’s most rigorous seismic standard. Designed for telecommunications providers, emergency services, healthcare facilities, and government agencies, it ensures network reliability when uptime is critical for public safety and disaster response.

Features

  • Rugged Fully Welded Steel Frame Design
  • Tested and Certified to Bellcore Telcordia GR-63-CORE Zone 4 with 750 LBS of Loaded Equipment
  • 19” and 23″ Rack Mount Spacing
  • 24” (19″ Rack Mount) and 28″ (23″ Rack Mount) Overall Frame Width
  • 42U Height
  • Rugged Bolt Down Base
  • 2 Pairs of Fully Adjustable 12-24 Tapped Mounting Rails (Square Holes Optional)
  • Hardware Pack Included: HW1224-50
  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request

Seismic Two-Post Racks

PART NUMBERHEIGHTWIDTHRACK MOUNT SPACINGFRAME CONSTRUCTIONDRAWINGCAD MODEL
TS701908-N240U24.00″19″SteelDownloadDownload
TS702308-N240U24.00″23″SteelDownloadDownload
TS731908-N242U24.00″19″SteelDownloadDownload
TS732308-N242U24.00″23″SteelDownloadDownload
TS781908-N245U24.00″19″SteelDownloadDownload
TS782308-N245U24.00″23″SteelDownloadDownload
