Reducer Brackets

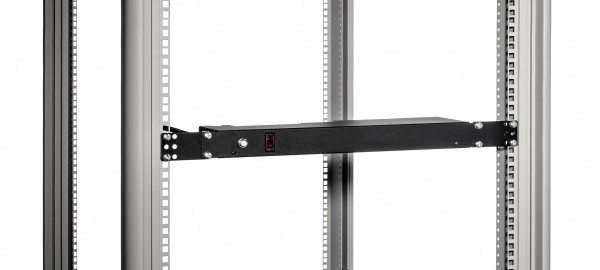

Server rack reducer brackets are used in wider enclosures with 23″ or 24″ standard EIA mounting patterns. These brackets adjust the wider mounting width to the standard 19″ EIA pattern, allowing equipment designed for 19″ mounting to be installed securely and correctly within the enclosure.
Features
- Made of 14GA Steel
- Flange That Mounts to the Existing Vertical Mounting Rails has .281 dia. Holes to Secure Reducer Brackets to the Rail and the Flange that the Equipment Mounts to has the Square Hole Mounting Pattern
- Comes with M6 Hardware (Cage nuts, 3/4″ screws, nylon washers)
Reducer Brackets
| PART NUMBER | BRACKET HEIGHT | MOUNTING INFORMATION | DRAWING | CAD MODEL |
|---|---|---|---|---|
| RB1U | 1U | Reduce 23″/24″ to 19″ | Download | Download |
| RB2U | 2U | Reduce 23″/24″ to 19″ | Download | Download |
| RB3U | 3U | Reduce 23″/24″ to 19″ | Download | Download |
| RB4U | 4U | Reduce 23″/24″ to 19″ | Download | Download |
| RB5U | 5U | Reduce 23″/24″ to 19″ | Download | Download |
| RB6U | 6U | Reduce 23″/24″ to 19″ | Download | Download |
| RB7U | 7U | Reduce 23″/24″ to 19″ | Download | Download |
| RB8U | 8U | Reduce 23″/24″ to 19″ | Download | Download |
| RB9U | 9U | Reduce 23″/24″ to 19″ | Download | Download |
| RB10U | 10U | Reduce 23″/24″ to 19″ | Download | Download |
