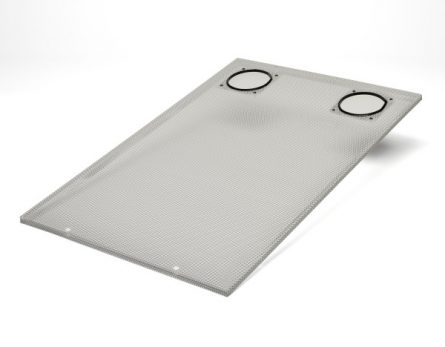

Perforated top panels are constructed from 63% open steel, allowing rising hot air to escape and helping keep critical equipment cool. For added flexibility, these panels can be equipped with two cutouts, grommets, and cover plates to route cables through the top while maintaining proper ventilation.
| PART NUMBER | RACK WIDTH | RACK DEPTH | CABLE ACCESS | DRAWING | CAD MODEL |
|---|---|---|---|---|---|
| PT2024 | 24″ | 24″ | None | Download | Download |
| PT2030 | 24″ | 30″ | None | Download | Download |
| PT2036 | 24″ | 36″ | None | Download | Download |
| PT2042 | 24″ | 42″ | None | Download | Download |
| PT2045 | 24″ | 45″ | None | Download | Download |
| PT2424 | 28″ | 24″ | None | Download | Download |
| PT2430 | 28″ | 30″ | None | Download | Download |
| PT2436 | 28″ | 36″ | None | Download | Download |
| PT2442 | 28″ | 42″ | None | Download | Download |
| PT2445 | 28″ | 45″ | None | Download | Download |
| PT2424 | 28″ | 24″ | None | Download | Download |
| PT2430 | 28″ | 30″ | None | Download | Download |
| PT2436 | 28″ | 36″ | None | Download | Download |
| PT2442 | 28″ | 42″ | None | Download | Download |
| PT2445 | 28″ | 45″ | None | Download | Download |
| PT2824 | 32″ | 24″ | None | Download | Download |
| PT2830 | 32″ | 30″ | None | Download | Download |
| PT2836 | 32″ | 36″ | None | Download | Download |
| PT2842 | 32″ | 42″ | None | Download | Download |
| PT2845 | 32″ | 45″ | None | Download | Download |
| PT2824 | 32″ | 24″ | None | Download | Download |
| PT2830 | 32″ | 30″ | None | Download | Download |
| PT2836 | 32″ | 36″ | None | Download | Download |
| PT2842 | 32″ | 42″ | None | Download | Download |
| PT2845 | 32″ | 45″ | None | Download | Download |

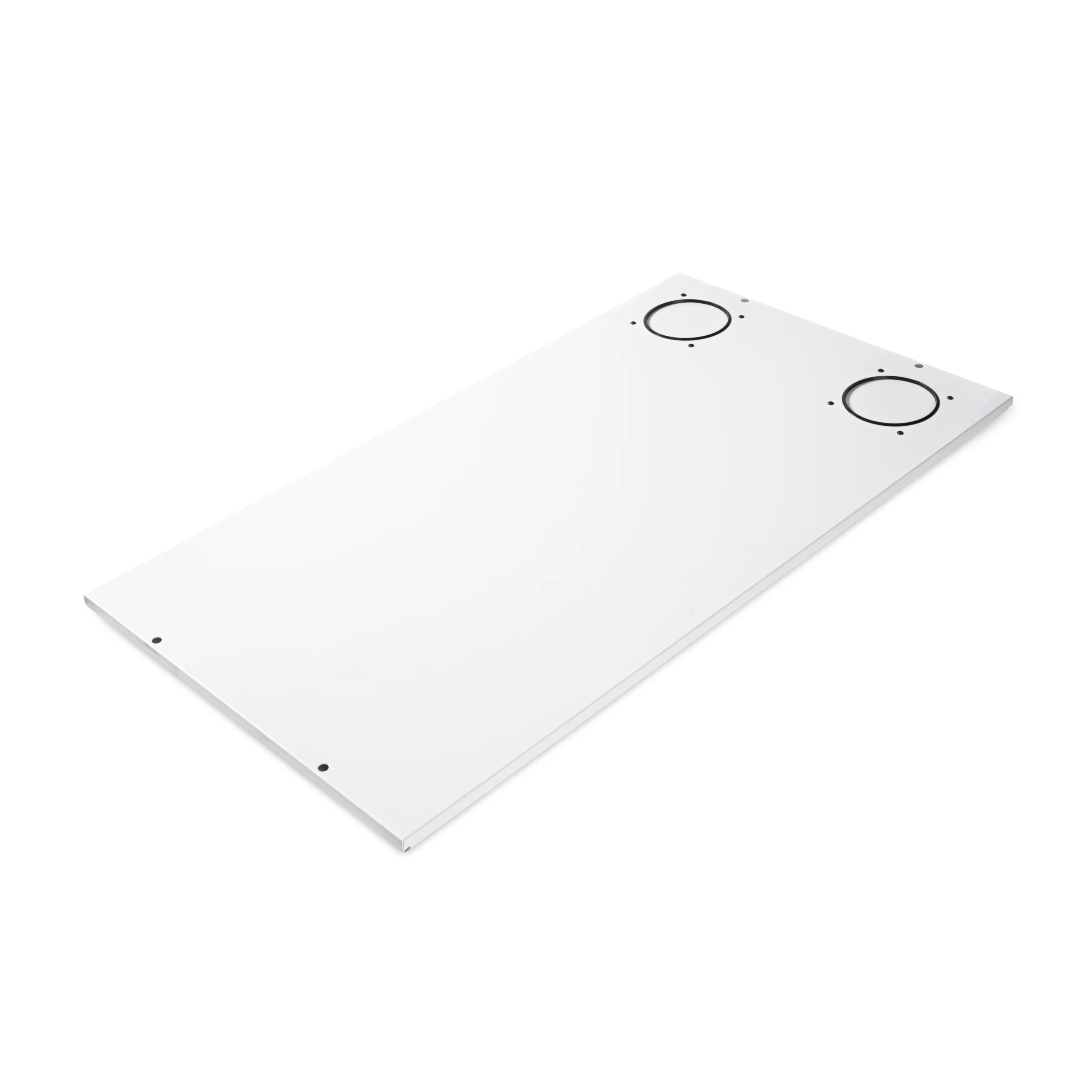

| PT2024-2HC | 24″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2030-2HC | 24″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2036-2HC | 24″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2042-2HC | 24″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2045-2HC | 24″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2424-2HC | 28″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2430-2HC | 28″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2436-2HC | 28″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2442-2HC | 28″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2445-2HC | 28″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2424-2HC | 28″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2430-2HC | 28″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2436-2HC | 28″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2442-2HC | 28″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2445-2HC | 28″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2824-2HC | 32″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2830-2HC | 32″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2836-2HC | 32″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2842-2HC | 32″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2845-2HC | 32″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2824-2HC | 32″ | 24″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2830-2HC | 32″ | 30″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2836-2HC | 32″ | 36″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2842-2HC | 32″ | 42″ | (2) 4.5″ Round Holes at Rear | Download | Download |
| PT2845-2HC | 32″ | 45″ | (2) 4.5″ Round Holes at Rear | Download | Download |
