Cable Management Rings (CMR)

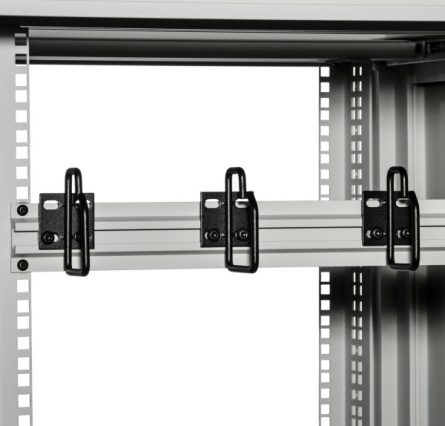

Cable Management Rings (CMR) provide a simple, effective way to secure and organize cables within the enclosure. Their thoughtful design allows cables to be placed into the rings easily while preventing them from slipping out, ensuring clean, orderly routing throughout the rack. The result is a neat, professional cable layout that enhances both serviceability and overall enclosure appearance.

Features

  • Made of 1/4″ Steel Rod Welded to a 12GA Steel Mounting Plate
  • Mounts Vertically or Horizontally
  • Mounts on VSBs, Lacing Panels, Vertical Mounting Rails, or to Certain Locations on the Frame
  • Powder Coated Black
  • Made in 3 Standard Sizes

Cable Management Rings (CMR)

PART NUMBERHEIGHTWIDTHDRAWINGCAD MODEL
CMR2X3R2″3″DownloadDownload
CMR3X3R3″3″DownloadDownload
CMR3X4R3″4″DownloadDownload
CMR4X5R4″5″DownloadDownload
