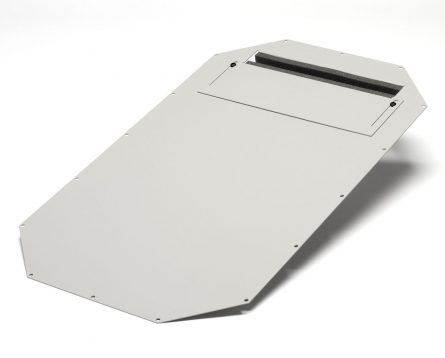

Bottom panels are available in solid or perforated styles, with optional sliding cable access doors for routing wires through the base. Cable access doors feature open-cell foam to seal around cables when closed.
Solid panels are ideal for sealed or air-conditioned enclosures, helping to direct airflow through equipment and prevent dust entry.
Perforated panels, with optional dust filters, allow airflow from the base while keeping out debris and pests, protecting equipment in demanding environments.
| PART NUMBER | RACK WIDTH | RACK DEPTH | CABLE ACCESS | DRAWING | CAD MODEL |
|---|---|---|---|---|---|
| SBP2024 | 24″ | 24″ | None | Download | Download |
| SBP2030 | 24″ | 30″ | None | Download | Download |
| SBP2036 | 24″ | 36″ | None | Download | Download |
| SBP2042 | 24″ | 42″ | None | Download | Download |
| SBP2045 | 24″ | 45″ | None | Download | Download |
| SBP2424 | 28″ | 24″ | None | Download | Download |
| SBP2430 | 28″ | 30″ | None | Download | Download |
| SBP2436 | 28″ | 36″ | None | Download | Download |
| SBP2442 | 28″ | 42″ | None | Download | Download |
| SBP2445 | 28″ | 45″ | None | Download | Download |
| SBP2824 | 32″ | 24″ | None | Download | Download |
| SBP2830 | 32″ | 30″ | None | Download | Download |
| SBP2836 | 32″ | 36″ | None | Download | Download |
| SBP2842 | 32″ | 42″ | None | Download | Download |
| SBP2845 | 32″ | 45″ | None | Download | Download |
| SBP2024-CAD | 24″ | 24″ | 3″X12″ Sliding Door | Download | Download |
| SBP2030-CAD | 24″ | 30″ | 3″X12″ Sliding Door | Download | Download |
| SBP2036-CAD | 24″ | 36″ | 3″X12″ Sliding Door | Download | Download |
| SBP2042-CAD | 24″ | 42″ | 3″X12″ Sliding Door | Download | Download |
| SBP2045-CAD | 24″ | 45″ | 3″X12″ Sliding Door | Download | Download |
| SBP2424-CAD | 28″ | 24″ | 3″X12″ Sliding Door | Download | Download |
| SBP2430-CAD | 28″ | 30″ | 3″X12″ Sliding Door | Download | Download |
| SBP2436-CAD | 28″ | 36″ | 3″X12″ Sliding Door | Download | Download |
| SBP2442-CAD | 28″ | 42″ | 3″X12″ Sliding Door | Download | Download |
| SBP2445-CAD | 28″ | 45″ | 3″X12″ Sliding Door | Download | Download |
| SBP2824-CAD | 32″ | 24″ | 3″X12″ Sliding Door | Download | Download |
| SBP2830-CAD | 32″ | 30″ | 3″X12″ Sliding Door | Download | Download |
| SBP2836-CAD | 32″ | 36″ | 3″X12″ Sliding Door | Download | Download |
| SBP2842-CAD | 32″ | 42″ | 3″X12″ Sliding Door | Download | Download |
| SBP2845-CAD | 32″ | 45″ | 3″X12″ Sliding Door | Download | Download |
