Vertical Support Bars (VSBS)

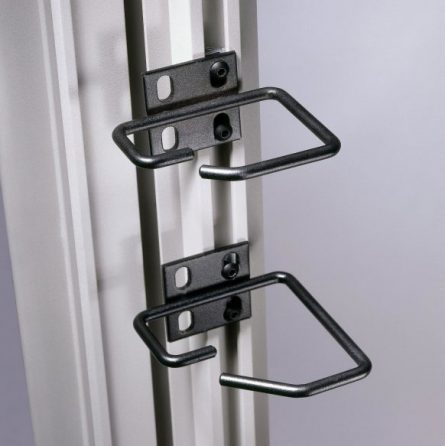

Vertical Support Bars (VSBs) are a very versatile way to mount cable management options such as cable rings, velcro saddles, fiber rings or cable and fiber management spools. VSBs provide a highly flexible cable routing solution in a variety of vertical and horizontal mounting orientations.

The cable management options can easily be adjusted on the vertical support bars in either linear direction by loosening a screw, sliding the cable ring, and tightening the screw.

Features

  • Vertical Support Bars can come in different horizontal configurations such as 19″, 23″, 24″ or front to rear VSBs to fit the depth of the enclosure, as well as vertical VSBs to match the height of the enclosure
  • Cable management options on each VSB can be supplied per customer request
  • Standard configurations are available as well as modified standard
  • Vertical Support Bars are designed to mount to the upper and lower frame member and are adjustable front to rear
  • Made of 6063-T5 aluminum extrusion
  • Options mount to a channel using spring nuts and screws
  • Can be made in any length
  • Horizontal or vertical
  • Unlimited adjustability of options mounted to the VSB
