Vented Lexan® Door

Vented Lexan® Door

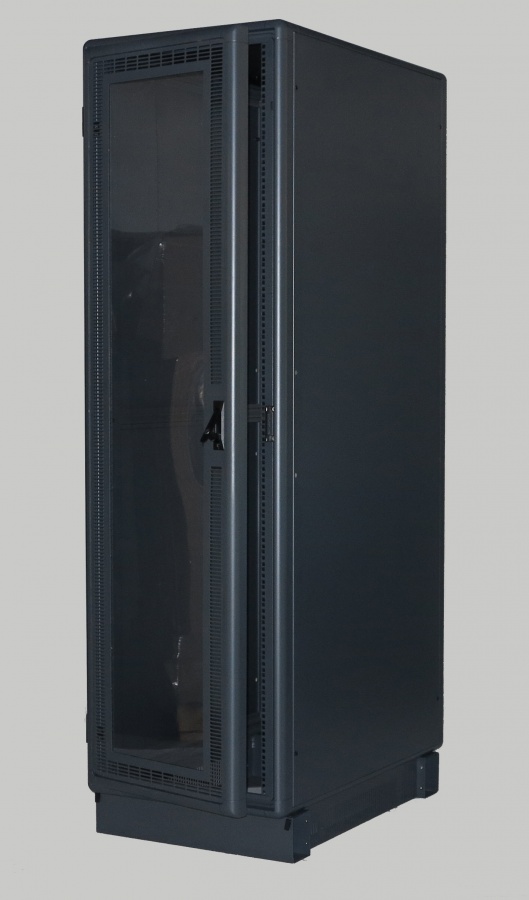

Vented Lexan® Doors are made with an aluminum extruded frame with a radius to match the enclosure for aesthetic appeal and a vent panel all around the door.

The smoked polycarbonate resin thermoplastic panel does not break like acrylic panels do and allows the customer to see the equipment in the enclosure and view the operational lights on the equipment.

The vent panel around the Lexan allows some air to flow through the front door.

Sales Information

Features

  • Security
  • Protection
  • Ventilation
  • Aesthetic appearance
  • Multiple locking and latching options
  • Can hinge left or right
  • Doors open 180 degrees

Part Numbers

Enclosure Frame ID19" ID Wide
Enclosures		20" ID Wide
Enclosures		23" and 24" mounting
in 24" ID Wide Enclosures		28" ID Wide
Enclosures
21.09" (12U)LD2119CCLD2120CCLD2124CCLD2128CC
24.59" (14U)LD2419CCLD2420CCLD2424CCLD2428CC
35.09" (20U)LD3519CCLD3520CCLD3524CCLD3528CC
42.09 (24U)LD4219CCLD4220CCLD4224CCLD4228CC
52.59 (30U)LD5219CCLD5220CCLD5224CCLD5228CC
61.34 (35U)LD6119CCLD6120CCLD6124CCLD6128CC
70.09 (40ULD7019CCLD7020CCLD7024CCLD7028CC
73.59 (42U)LD7319CCLD7320CCLD7324CCLD7328CC
77.09 (44U)LD7719CCLD7720CCLD7724CCLD7728CC
84.09 (48U)LD8419CCLD8420CCLD8424CCLD8428CC
