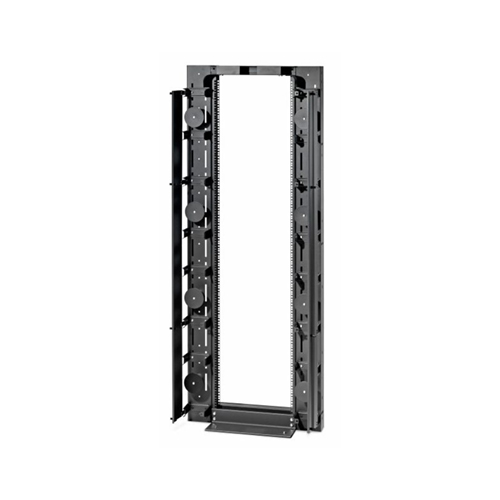

Fiber Frame Rack

Fiber-Frame-Rack

Designed specifically to meet the special requirements of fiber cable routing in a standard 19″ network management environment.

The fiber frame is available with standard bolt-down angle base or wire way base for In Row solutions.

Front fiber management and rear cable management in each of the vertical fiber channels.

Sales Information

Features

  • 45U 2 Post fiber frame  with standard 19″ EIA-310-D rack mounting  pattern with square holes for M6 cage nuts and has fiber channels on either side or both sides, Channels have fiber spools in the front and Velcro saddles for cable management in the rear.
  • Standard heavy duty mounting angle base
  • Designed specifically to meet the special requirements of the fiber cable routing in a 19″ standard network management environment.
  • Side-mounted routing channels have full front hinging doors
  • Powder coated black

Options & Accessories

  • Rack mounted cable management solutions
  • Cantilever shelves
  • Variety of power distribution solutions
  • Wire way base for In Row solutions
  • Buss bars
  • Optional colors to match In Row equipment
  • Variable heights to match adjacent server racks in In Row solutions



Caution is to be exercised when loading equipment on cantilever shelves that are mounted on 2 post racks, Telco Racks, Fiber Frames, or enclosures to avoid puttiing too much unbalanced weight on the shelves and causing the racks or enclosures to tip over. It is highly recommended to bolt the racks, Fiber Frames, or enclosures to the floor prior to loading the cantlever shelves with equipment.

Part Numbers

  • FF7819W-CC2-BK : 19″ Rackmount on PDE base (Channels on both sides)

  • FF7819W-CC1L-BK : 19″ Rackmount on PDE base (Left side channel only)

  • FF7819W-CC1R-BK : 19″ Rackmount on PDE base (Right side channel only)

  • FF7823W-CC2-BK : 23″ Rackmount on PDE base (Channels on both sides)

  • FF7823W-CC1L-BK : 23″ Rackmount on PDE base (Left side channel only)

  • FF7823W-CC1R-BK : 23″ Rackmount on PDE base (Right side channel only)
